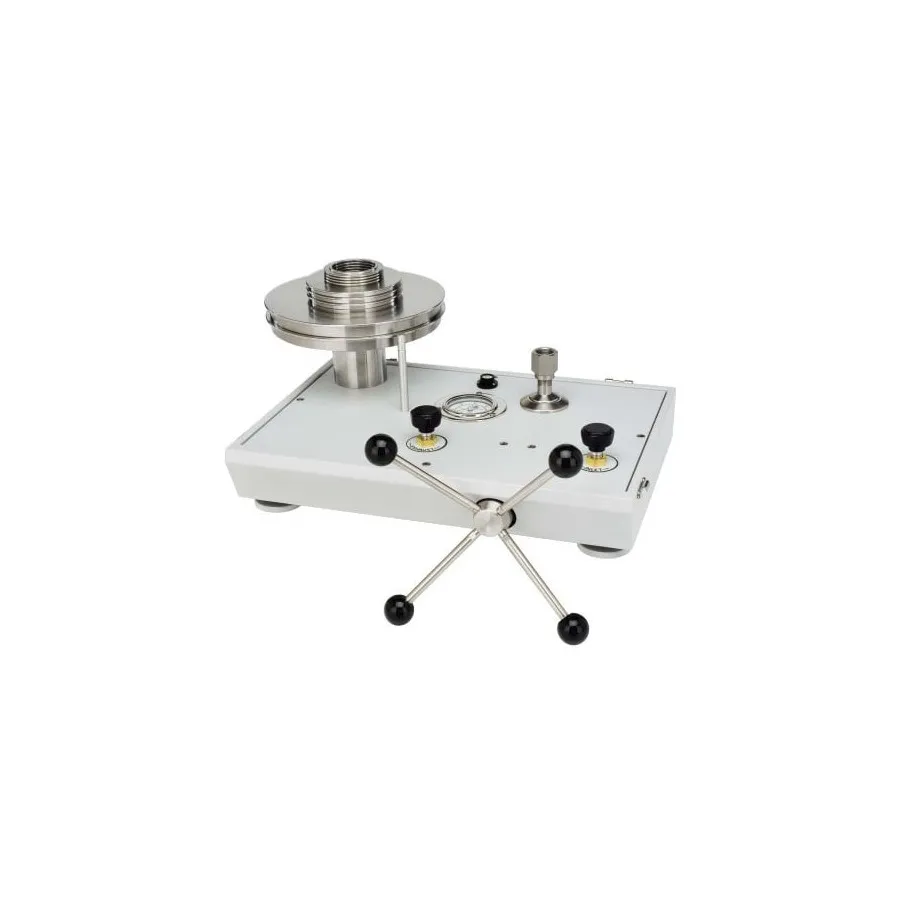

Fluke P3032-KGCM2 Liquid Lubricated Gas Deadweight Tester

Overview

The Fluke P3032-KGCM2 is a liquid-lubricated, gas-operated deadweight tester designed for precision pressure calibration and verification of pressure-sensing devices. With a pressure range from 1 to 140 kgf/cm² and accuracy of ±0.015% of reading (±0.008% with optional PressCal software), this instrument is engineered for demanding metrology applications. The piston-cylinder assembly, lubricated with mineral oil, provides stable performance and protection against gas supply contamination.

Key Features

• Pressure range 1 to 140 kgf/cm² with 0.1 kgf/cm² standard increments
• Accuracy ±0.015% of reading (±0.008% optional with PressCal software)
• Tungsten carbide piston and martensitic steel cylinder for durability and low thermal distortion
• Piston flotation indicator for equilibrium detection
• Screw press mechanism for fine pressure control
• Mounted spirit level and adjustable feet for proper alignment
• O-ring test station design eliminates need for PTFE tape or wrenches
• High-quality needle valves for optimal control and repeatability

Applications

• Calibration of pressure gauges and transducers
• Verification of pressure transmitters and switches
• Laboratory and field pressure measurement standards
• Traceability verification for pressure-sensing devices

Included Accessories

• Series 3 nonmagnetic austenitic stainless steel weight masses
• Operating fluid (55-655 mineral oil) and spare seals
• Detachable piston chamber lid
• Accredited calibration certificate
• Adaptor fittings for various connections
• Rugged carrying case
