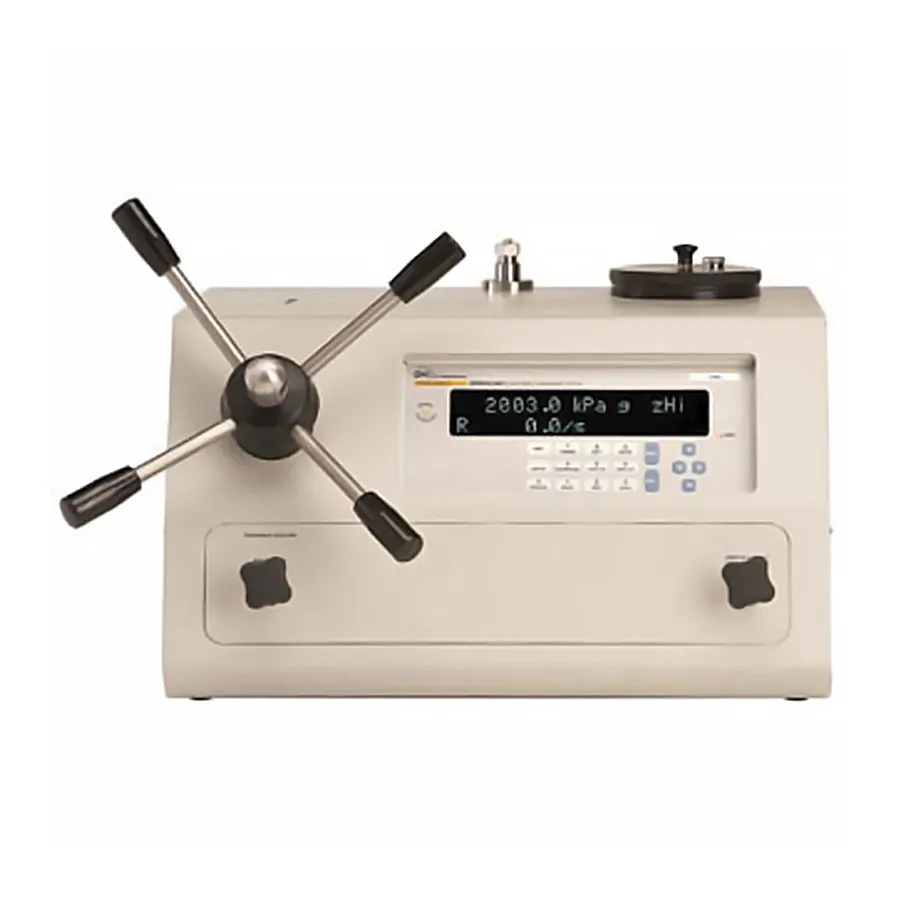

Fluke 6531-200M-B Electronic Deadweight Tester
Request a quote
Fluke 6531-200M-B high-pressure electronic deadweight tester provides ±0.02% reading accuracy for extreme-pressure calibration to 30,000 psi with digital monitoring.
Product details
| Model | 6531-200M-B |
| Manufacturer | Fluke |
| Category | Deadweight Testers |
| Availability | Made to order |
Description
Overview
The Fluke 6531-200M-B is a high-pressure electronic deadweight tester for extreme-pressure hydraulic calibration applications. It features a high-performance electronic reference pressure monitor integrated with manual pressure control, enabling verification of high-pressure systems and transducers in critical industrial environments.
Key Features
- Pressure range 40–200 MPa (6,000–30,000 psi)
- ±0.02% of reading accuracy (one-year calibration interval)
- Built-in priming system to eliminate air pockets
- Quick-mount test port design eliminates need for PTFE tape
- AutoTest, AutoRange, and onboard data capture with storage
- RS-232 interface for automated data collection
- Compatible with water and wide range of hydraulic fluids
- 300 cc (18 in³) reservoir capacity
- Overpressure alarm and ready/not-ready indicator
- Universal power supply 100–240 VAC, 50/60 Hz
- Optional battery/charger pack and foot switch available
Applications
- Extreme-pressure industrial system calibration
- High-pressure transducer and gauge verification
- Oil and gas equipment pressure testing
- Automotive and aerospace high-pressure applications
Included Accessories
- Electronic deadweight tester unit
- AC/DC power supply
- Operating manual
- Vacuum liquid fill kit
- Test station quick-mount fitting
- NPT adapters: 1/8", 1/4", 3/8", 1/2"
- BSP adapters: 1/8", 1/4", 3/8", 1/2"
- Metric adapters: M20×1.5, M14×1.5
