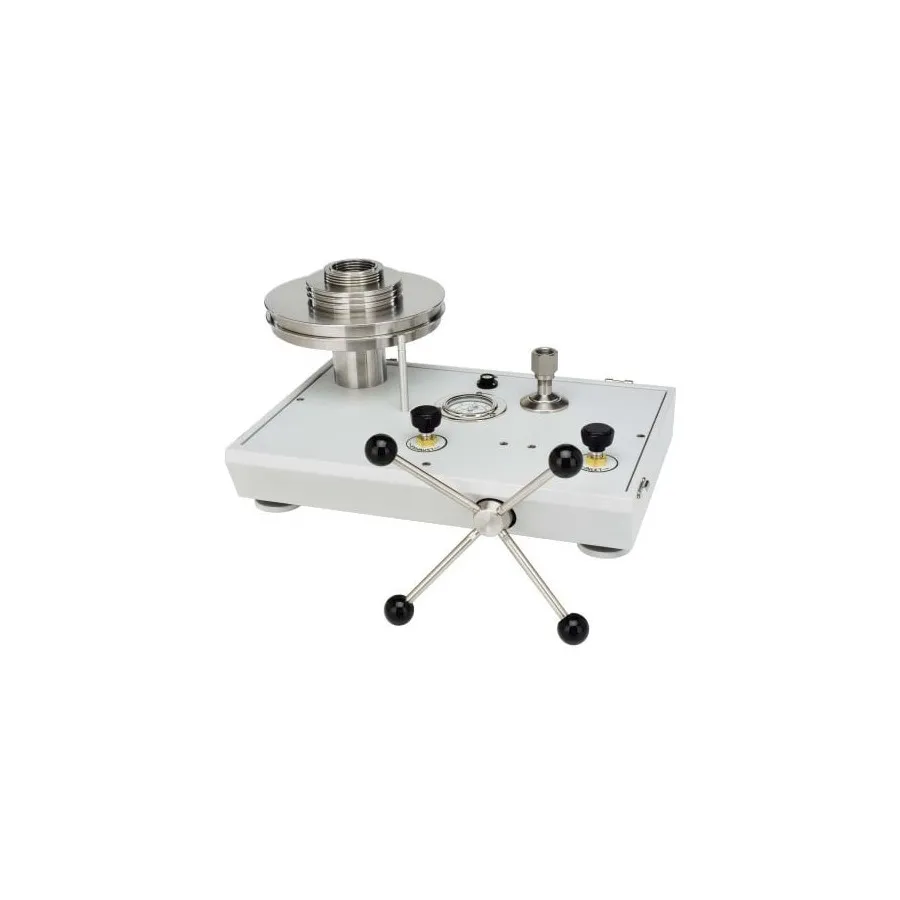

Fluke P3031-PSI Gas Deadweight Tester

Overview

The Fluke P3031-PSI is a liquid-lubricated gas-operated deadweight tester designed as the primary standard for pressure measurement and calibration. The piston/cylinder assembly is lubricated with mineral oil, providing excellent resistance to contamination from gas supply or environmental sources. This model covers pressure ranges from 10 to 1,000 psi with exceptional stability and repeatability.

Key Features

• Liquid-lubricated piston-cylinder design for superior stability and repeatability
• Pressure range: 10 to 1,000 psi with 1 psi standard increments
• Exceptional accuracy: ±0.015% of reading (±0.008% optional with PressCal software)
• Tungsten carbide piston with martensitic steel cylinder
• Piston flotation indicator for equilibrium detection
• Screw press for fine pressure control
• O-ring test station design eliminates need for PTFE tape or wrenches
• Mounted spirit level and adjustable feet for proper alignment
• High-quality needle valves for optimum control
• Gas supply via 1/4 inch NPT female external port

Applications

• Calibration of pressure gauges and mechanical indicators
• Calibration of pressure transmitters and transducers
• Verification of pressure switches
• Laboratory and field pressure measurement standards
• Pressure instrument validation and uncertainty analysis

Included Accessories

• Series 3 nonmagnetic austenitic stainless steel mass set
• Operating fluid (55-655 mineral oil) and spare seals
• Detachable protective lid
• Accredited calibration certificate
• Pressure adapters
• Rugged carrying case
