Fluke P3031-MPA is a liquid-lubricated gas deadweight tester for pressure ranges 0.1–7 MPa with ±0.015% accuracy.
Product details
| Model | P3031-MPA |
| Manufacturer | Fluke |
| Category | Deadweight Testers |
| Availability | Made to order |
Description
Overview

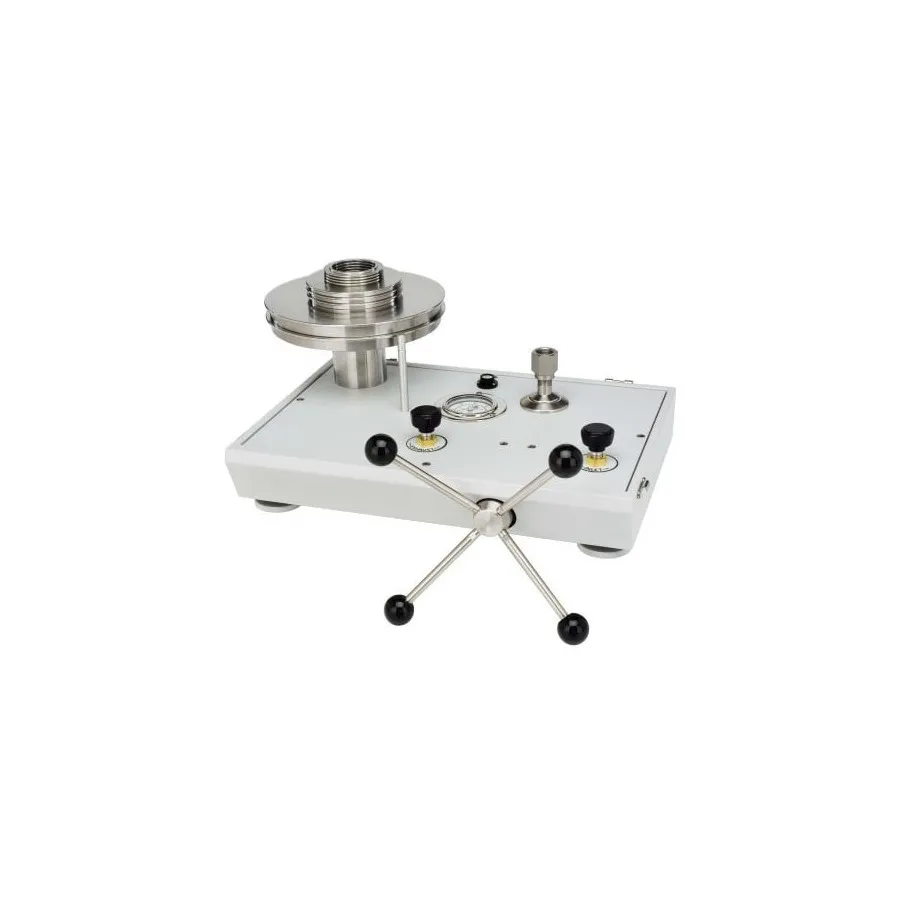

The Fluke P3031-MPA is a liquid-lubricated gas-operated deadweight tester designed as the primary standard for pressure measurement and calibration. The piston/cylinder assembly is lubricated with mineral oil, providing excellent resistance to contamination from gas supply or environmental sources. This model covers pressure ranges from 0.1 to 7 MPa with exceptional stability and repeatability.
Key Features
- Liquid-lubricated piston-cylinder design for superior stability and repeatability
- Pressure range: 0.1 to 7 MPa with 0.01 MPa standard increments
- Exceptional accuracy: ±0.015% of reading (±0.008% optional with PressCal software)
- Tungsten carbide piston with martensitic steel cylinder
- Piston flotation indicator for equilibrium detection
- Screw press for fine pressure control
- O-ring test station design eliminates need for PTFE tape or wrenches
- Mounted spirit level and adjustable feet for proper alignment
- High-quality needle valves for optimum control
- Gas supply via 1/4 inch NPT female external port
Applications
- Calibration of pressure gauges and mechanical indicators
- Calibration of pressure transmitters and transducers
- Verification of pressure switches
- Laboratory and field pressure measurement standards
- Pressure instrument validation and uncertainty analysis
Included Accessories
- Series 3 nonmagnetic austenitic stainless steel mass set
- Operating fluid (55-655 mineral oil) and spare seals
- Detachable protective lid
- Accredited calibration certificate
- Pressure adapters
- Rugged carrying case
Specifications
| Series | P3000 Series |
