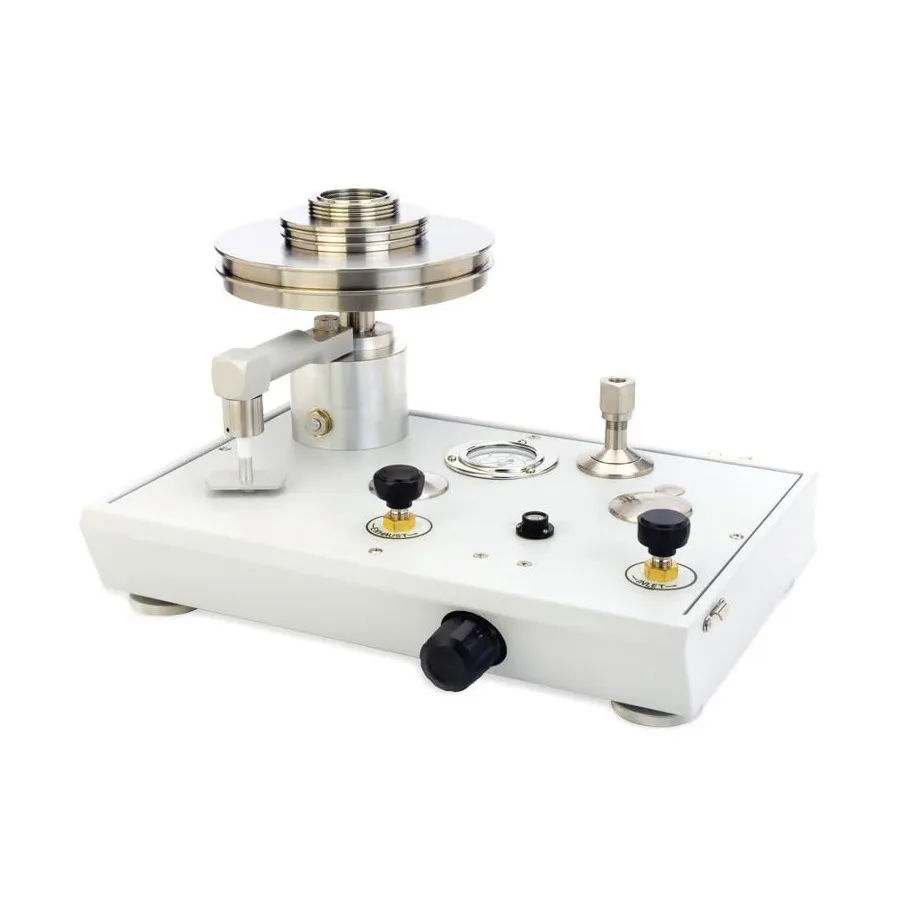

Fluke P3015-MPA Gas Deadweight Tester
Request a quote
Fluke P3015-MPA — pneumatic deadweight tester with ±0.015% accuracy, 0.02–3.5 MPa range, tungsten carbide piston, primary pressure standard.
Product details
| Model | P3015-MPA |
| Manufacturer | Fluke |
| Category | Deadweight Testers |
| Availability | Made to order |
Description
Overview
The P3015-MPA is a single pressure pneumatic deadweight tester that serves as a primary standard for measuring and calibrating pressure devices. It employs a precision piston-cylinder assembly with tungsten carbide piston and martensitic steel cylinder, certified to NIST standards for accuracy and traceability. The suspended piston design provides stable, repeatable measurement of gauge pressures from 0.02 to 3.5 MPa in SI metric units.
Key Features
- Piston-cylinder design with tungsten carbide piston for stability and repeatability
- Accuracy of ±0.015% of reading (±0.008% optional with PressCal software)
- Pressure range: 0.02 to 3.5 MPa with 0.01 MPa standard increments
- Piston flotation indicator for equilibrium detection
- High quality needle valves for precise pressure control
- O-ring test station design eliminates need for PTFE tape or wrenches
- Mounted spirit level and adjustable feet for proper setup
- Optional fine increment weights available (aluminum, 2.7 g/cm³)
Applications
- Calibrating pressure gauges and instruments
- Calibrating pressure transducers and transmitters
- Calibrating pressure switches
- Pressure transfer standard applications
- Laboratory and field calibration work
Included Accessories
- Series 3 nonmagnetic austenitic stainless steel masses
- Detachable lid
- Accredited calibration certificate
- Adaptors
- Rugged carrying case
Specifications
| Series | P3000 Series |
