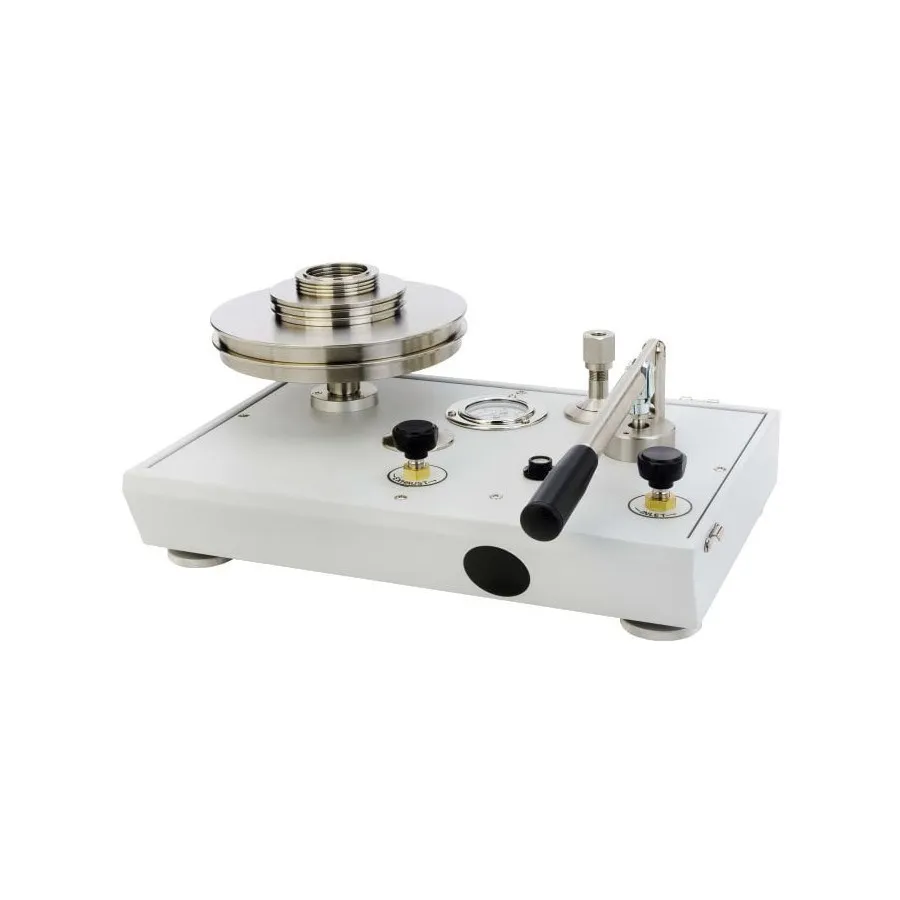

Fluke P3015-KPA-P Gas Deadweight Tester
Request a quote
Fluke P3015-KPA-P — pneumatic deadweight tester with built-in pump, ±0.015% accuracy, 20–3,500 kPa range, tungsten carbide piston.
Product details
| Model | P3015-KPA-P |
| Manufacturer | Fluke |
| Category | Deadweight Testers |
| Availability | Made to order |
Description
Overview
The P3015-KPA-P is a single pressure pneumatic deadweight tester with optional built-in hand pump, serving as a primary standard for measuring and calibrating pressure devices. It employs a precision piston-cylinder assembly with tungsten carbide piston and martensitic steel cylinder, certified to NIST standards. The suspended piston design provides stable, repeatable measurement with finer 1 kPa increments across the 20 to 3,500 kPa range.
Key Features
- Piston-cylinder design with tungsten carbide piston for stability and repeatability
- Optional built-in hand pump for pressure generation (up to 300 psi / 2 MPa)
- Accuracy of ±0.015% of reading (±0.008% optional with PressCal software)
- Pressure range: 20 to 3,500 kPa with 1 kPa standard increments
- Piston flotation indicator for equilibrium detection
- High quality needle valves for precise pressure control
- O-ring test station design eliminates need for PTFE tape or wrenches
- Mounted spirit level and adjustable feet for proper setup
- Optional fine increment weights available (aluminum, 2.7 g/cm³)
Applications
- Calibrating pressure gauges and instruments
- Calibrating pressure transducers and transmitters
- Calibrating pressure switches
- Pressure transfer standard applications
- Laboratory and field calibration work
- Portable field calibration with built-in pump option
Included Accessories
- Series 3 nonmagnetic austenitic stainless steel masses
- Optional built-in pump
- Detachable lid
- Accredited calibration certificate
- Adaptors
- Rugged carrying case
Specifications
| Series | P3000 Series |
