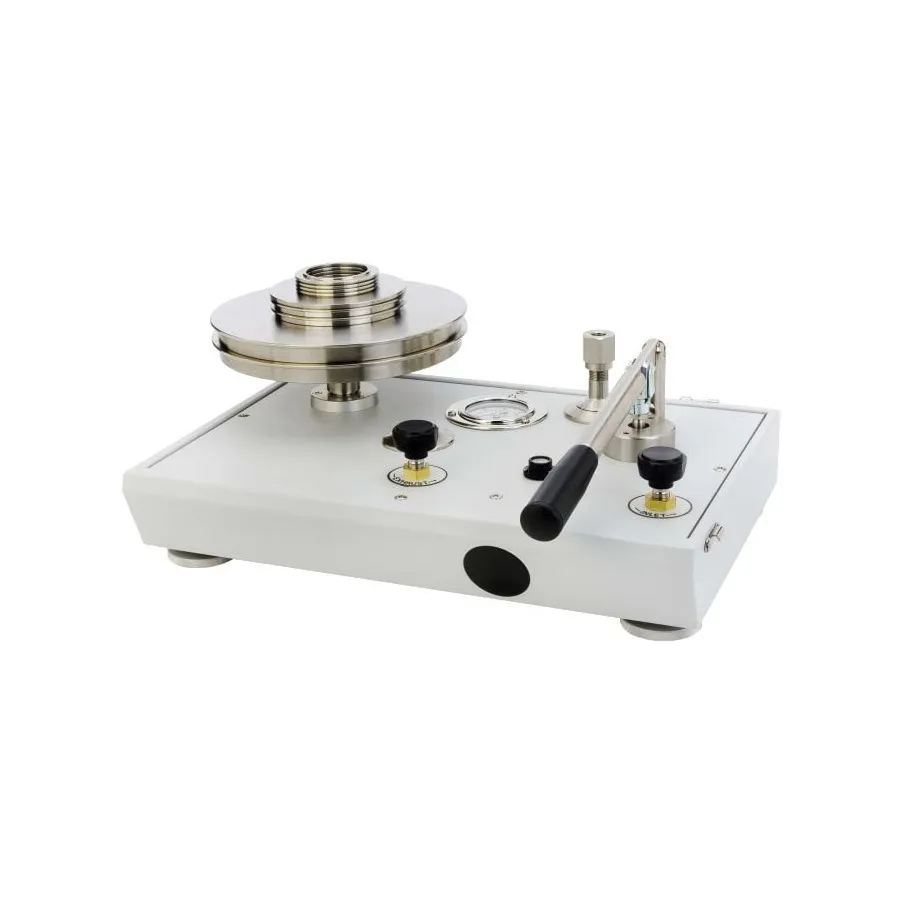

Fluke P3015-KGCM2-P Gas Deadweight Tester
Request a quote
Fluke P3015-KGCM2-P is a pneumatic deadweight tester with built-in hand pump, 0.2–35 kgf/cm² range, and ±0.015% accuracy.
Product details
| Model | P3015-KGCM2-P |
| Manufacturer | Fluke |
| Category | Deadweight Testers |
| Availability | Made to order |
Description
Overview
The Fluke P3015-KGCM2-P is a pneumatic deadweight tester with integrated hand pump for pressure and vacuum generation up to 300 psi (2 MPa). It serves as a primary standard for pressure measurement and calibration in kgf/cm² units with tungsten carbide piston construction and NIST-traceable accuracy. The suspended piston design provides excellent stability and repeatability across the 0.2–35 kgf/cm² pressure range.
Key Features
- Tungsten carbide piston and martensitic steel cylinder for stability and repeatability
- Built-in hand pump for pressure generation to 300 psi (2 MPa) and vacuum generation to 90%
- Piston flotation indicator for easy pressure equilibrium detection
- High-quality needle valves for precise pressure control
- Mounted spirit level and adjustable feet for proper instrument alignment
- O-ring test station design eliminates need for PTFE tape or wrenches
- Accuracy: ±0.015% of reading (±0.008% optional with PressCal software)
Applications
- Calibration of pressure gauges and transducers
- Calibration of pressure transmitters and pressure switches
- Pressure measurement standards and reference standards
- Field and portable pressure calibration
Included Accessories
- Series 3 nonmagnetic austenitic stainless steel weight masses
- Built-in hand pump
- Detachable lid
- Accredited calibration certificate
- Adaptors
- Rugged transport case
Specifications
| Series | P3000 Series |
