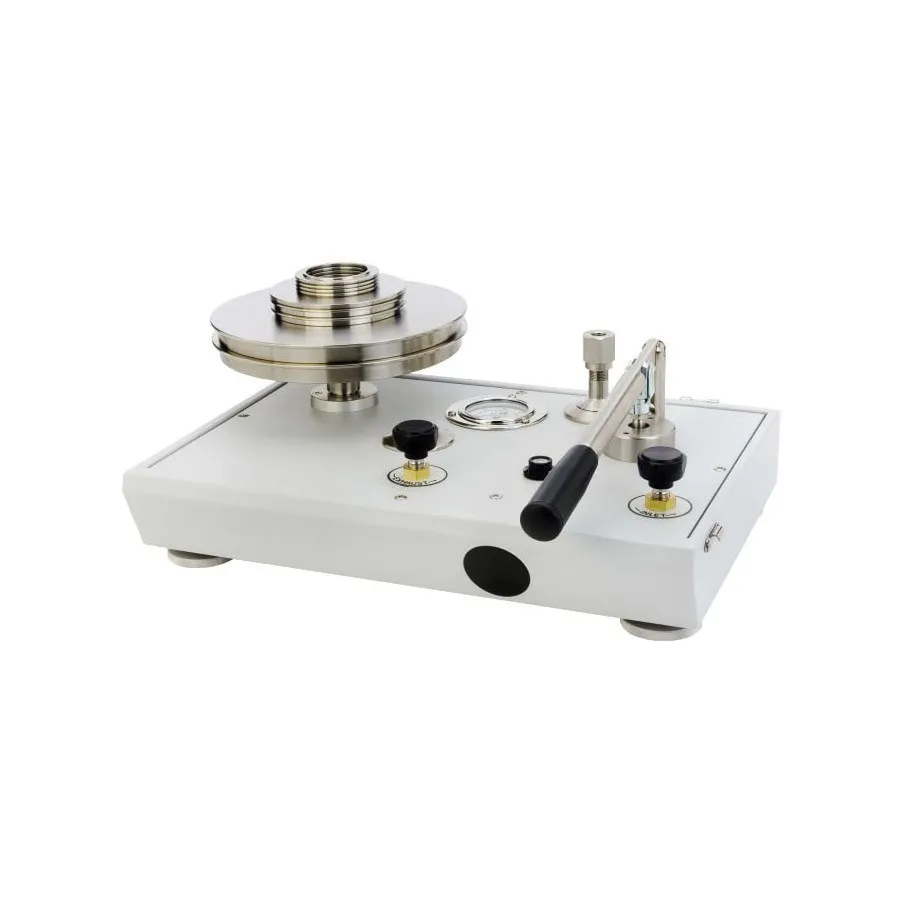

Fluke P3015-BAR-P Gas Deadweight Tester

Overview

The Fluke P3015-BAR-P is a pneumatic deadweight tester with integrated hand pump for pressure and vacuum generation up to 300 psi (2 MPa). It serves as a primary standard for pressure measurement and calibration with tungsten carbide piston construction and NIST-traceable accuracy. The suspended piston design provides excellent stability and repeatability across the 0.2–35 bar pressure range.

Key Features

• Tungsten carbide piston and martensitic steel cylinder for stability and repeatability
• Built-in hand pump for pressure generation to 300 psi (2 MPa) and vacuum generation to 90%
• Piston flotation indicator for easy pressure equilibrium detection
• High-quality needle valves for precise pressure control
• Mounted spirit level and adjustable feet for proper instrument alignment
• O-ring test station design eliminates need for PTFE tape or wrenches
• Accuracy: ±0.015% of reading (±0.008% optional with PressCal software)

Applications

• Calibration of pressure gauges and transducers
• Calibration of pressure transmitters and pressure switches
• Pressure measurement standards and reference standards
• Field and portable pressure calibration

Included Accessories

• Series 3 nonmagnetic austenitic stainless steel weight masses
• Built-in hand pump
• Detachable lid
• Accredited calibration certificate
• Adaptors
• Rugged transport case
