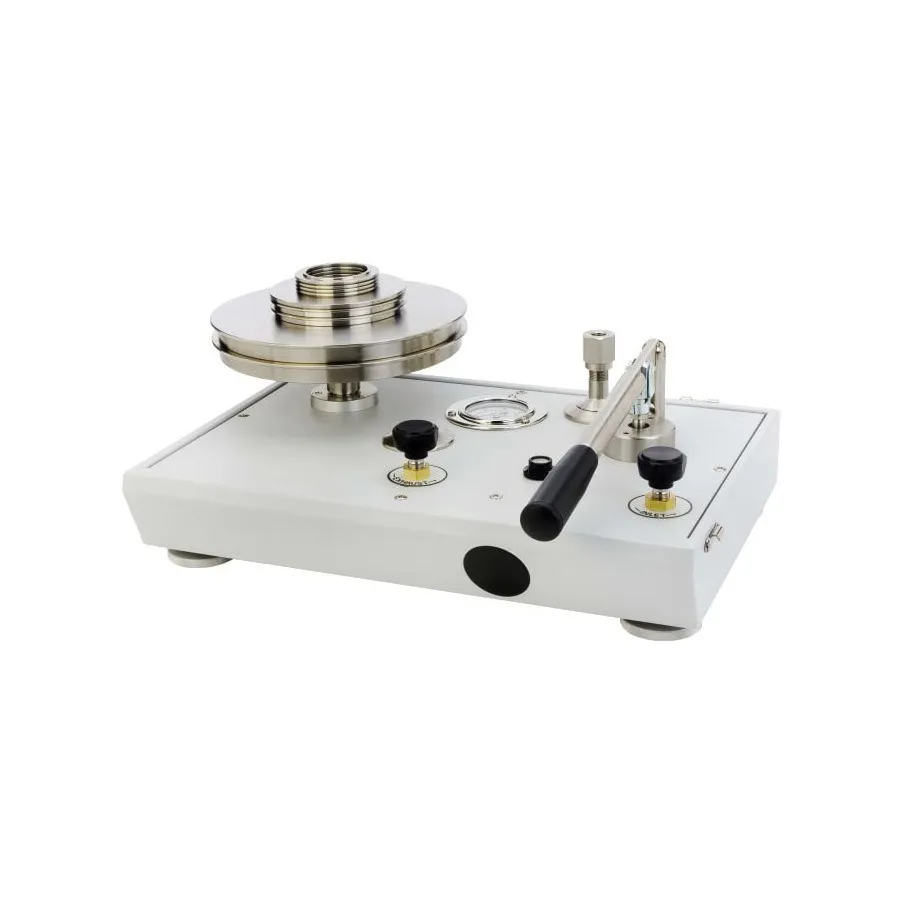

Fluke P3011-MBAR-P Vacuum Deadweight Tester

Overview

The Fluke P3011-MBAR-P Vacuum Deadweight Tester is a precision pressure calibration standard designed for vacuum measurements in mbar units. It employs a suspended piston-cylinder design with ceramic piston and martensitic steel cylinder for excellent stability and repeatability. Traceable to NIST standards, it provides 0.015% reading accuracy (or 0.008% with PressCal software correction).

This model features an optional built-in hand pump for both pressure and vacuum generation, making it versatile for laboratory and field applications. The unit operates from 30 to 1,000 mbar with 10 mbar increments.

Key Features

• Ceramic piston and martensitic steel cylinder for stability and low thermal coefficients
• Accuracy of 0.015% of reading (±0.008% optional with PressCal software)
• Vacuum range: 30 to 1,000 mbar with 10 mbar increments
• Optional built-in hand pump: 90% vacuum and 300 psi (2 MPa) pressure generation
• Piston flotation indicator for equilibrium detection
• High-quality needle valves for optimum pressure control
• Test station design with O-rings eliminates need for PTFE tape or wrenches
• Mounted spirit level and adjustable feet
• Series 3 nonmagnetic austenitic stainless steel masses with accredited calibration

Applications

• Calibration of pressure transducers and transmitters
• Calibration of pressure gauges and pressure switches
• Vacuum system validation and testing
• Laboratory and field pressure standards
• NIST-traceable pressure measurements

Included Accessories

• Series 3 nonmagnetic austenitic stainless steel masses
• Vacuum weights
• Detachable lid
• Accredited calibration certificate
• Adaptors
• Rugged carrying case
