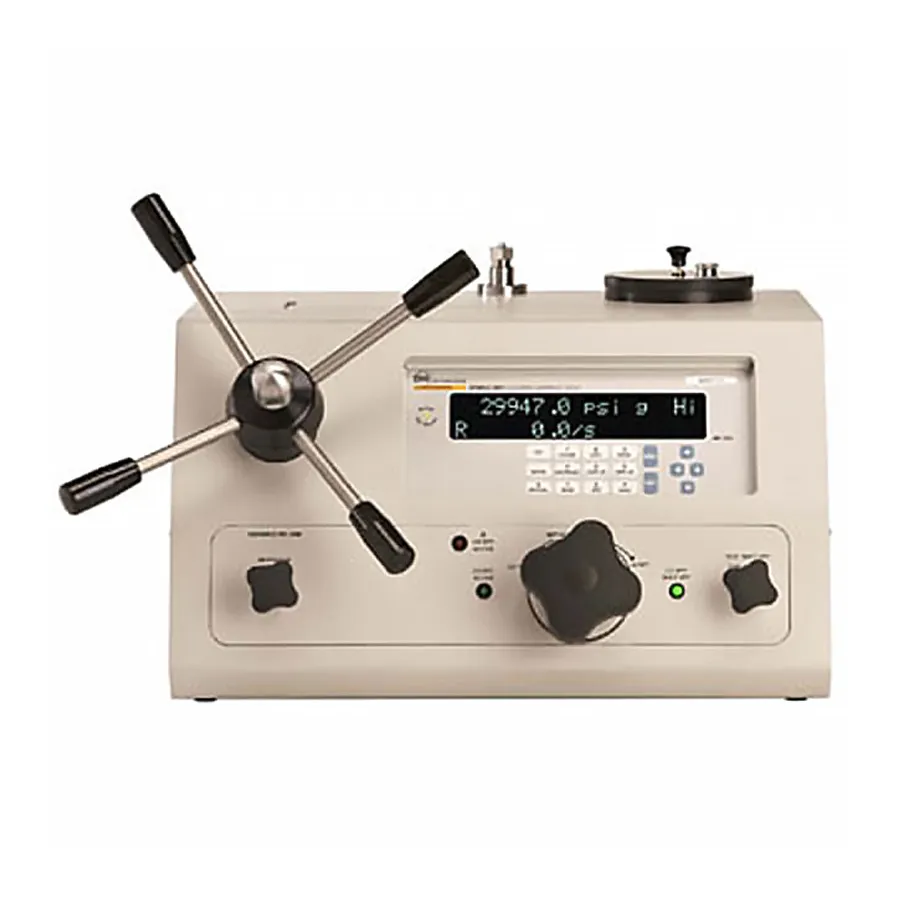

Fluke 6532-200M-B Electronic Deadweight Tester

Overview

The Fluke 6532-200M-B E-DWT (Electronic Deadweight Tester) is a high-range hydraulic pressure calibration system designed for the most demanding pressure testing applications. It combines electronic reference pressure monitoring with manual pressure generation for precision calibration from 4 to 200 MPa.

Key Features

• Pressure range: 4 to 200 MPa (600 to 30,000 psi) — widest range in the series
• Accuracy: ±0.02% of reading (one-year), 0.025% (two-year)
• Built-in priming system to fill and purge air from test system
• Unique test port design eliminates need for PTFE tape or wrenches
• Compatible with water and other common test liquids
• Reservoir capacity: 300 cc (18 cubic inches)
• AutoTest and AutoRange modes with ready/not ready indicator
• Onboard data capture and storage with overpressure alarm
• RS-232 interface for automated real-time data collection
• Power supply: 100 to 240 VAC, 50/60 Hz (optional battery pack available)
• Optional foot switch for hands-free data collection

Applications

• Ultra-high pressure gauge calibration up to 30,000 psi
• Laboratory and field pressure testing
• Transducer and pressure switch calibration
• High-pressure system diagnostics and qualification

Included Accessories

• Electronic Deadweight Tester unit with reference pressure monitor
• AC to DC power supply
• Operating manual
• Vacuum liquid fill kit
• Test station quick-mount fitting
• NPT adapters: 1/8", 1/4", 3/8", 1/2"
• BSP adapters: 1/8", 1/4", 3/8", 1/2"
• Metric adapters: M20 x 1.5 and M14 x 1.5
