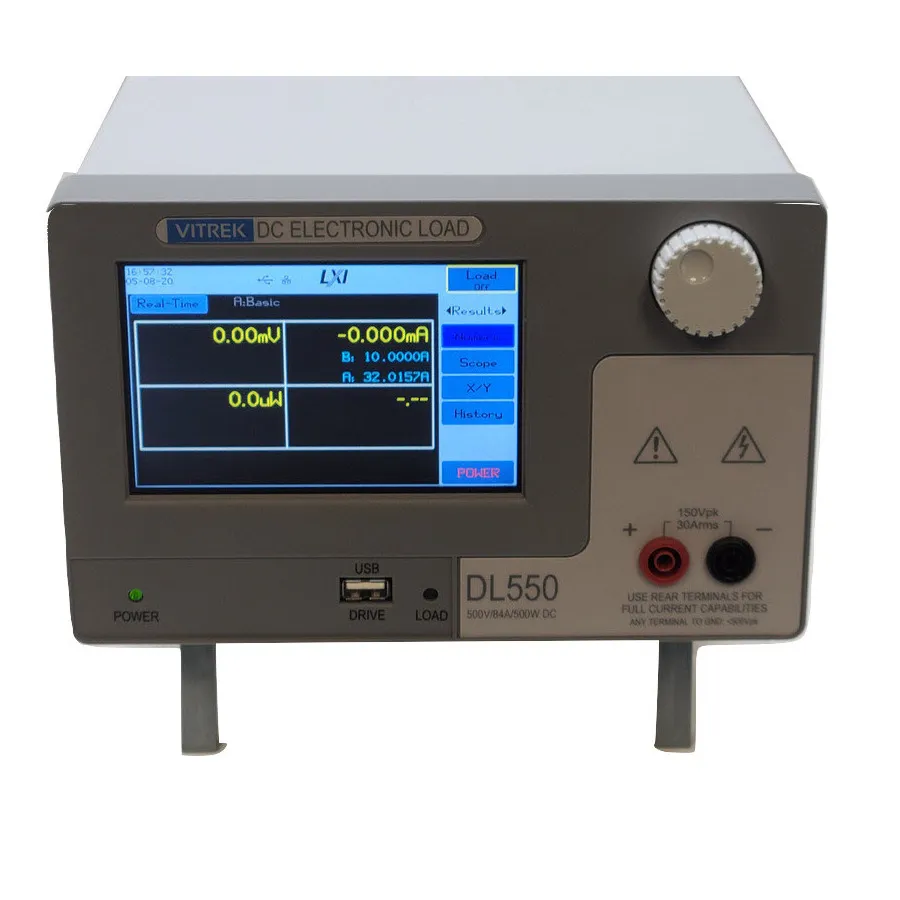

Vitrek DL550 DC Electronic Load

Overview

The Vitrek DL550 is a versatile DC electronic load with integrated color touchscreen display for configuration and measurement. It provides high-accuracy voltage and current measurements (0.05%) with the ability to resolve pulse and sweep steps as short as 20μs and pulse frequencies up to 100kHz. The DL550 can generate loading from kilowatts down to microwatts at voltages up to 500V, making it adaptable to higher-voltage applications including power supplies, industrial electronics, and general laboratory testing.

Key Features

• Color touchscreen display for intuitive setup and channel selection
• High-accuracy measurements: ±0.05% voltage and current within 20μs resolution
• Pulsed loading capability up to 100kHz with sweep steps as short as 20μs
• Supports voltages up to 500V for higher-power applications
• Transient and non-linear loading modes with up to 100-step arbitrary sequences
• Integrated oscilloscope for real-time waveform viewing
• Configurable rising and falling edge controls with soft-start capability
• Historical data logging with both graphical and numerical display
• X/Y plotting of voltage vs current and voltage vs power characteristics
• Comprehensive self-test to verify circuit functionality
• Protected short-loading with automated current and power limiting
• Compact design: 5" H × 8.5" W × 13" D
• Multiple interface options: LAN, USB Device & Host, Digital I/O

Applications

• High-voltage power supply testing
• Industrial power electronics and motor drive testing
• LED driver and lighting system testing
• Battery and battery charger evaluation
• General laboratory and R&D measurements
