DC Electronic Loads

DC electronic loads are programmable test instruments designed to simulate resistive, constant-current, constant-voltage, or constant-power loads on direct current power sources. Engineers use them to stress-test power supplies, battery packs, DC-DC converters, fuel cells, and photovoltaic systems under controlled, repeatable conditions. By simulating real-world load profiles in the lab, DC electronic loads enable comprehensive validation of power conversion efficiency, transient response, and overcurrent protection behavior.

Modern programmable DC electronic loads support dynamic load switching, test sequences, and automated routines via GPIB, USB, or LAN interfaces, making them essential in automated test environments. They are available in bench-top and rack-mount configurations covering voltage and current ranges from milliamps to hundreds of amps.

Typical Applications

Power supply validation and burn-in testing in electronics manufacturing
Battery and fuel cell characterization in energy storage R&D
DC-DC converter efficiency measurement and regulation testing
LED driver and lighting component testing
Automotive 12V/48V/HV system component testing
Photovoltaic inverter and MPPT algorithm testing

Popular Brands

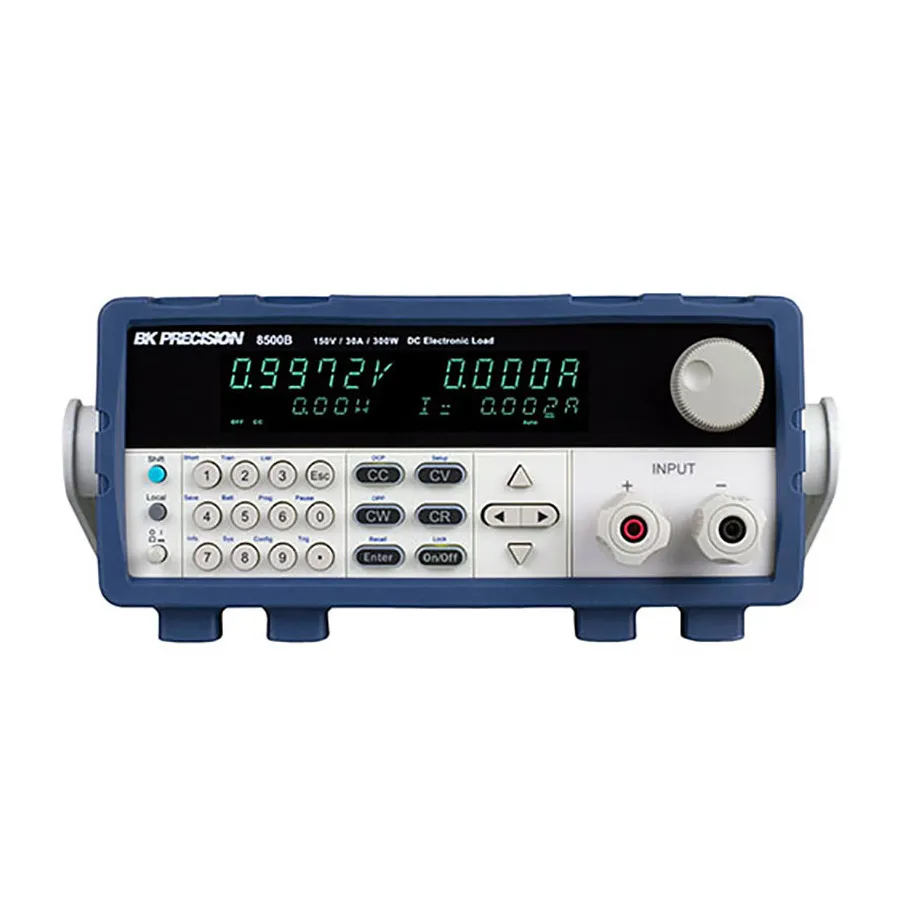

Chroma and B&K Precision are widely used for programmable DC electronic loads, offering broad voltage and current ranges with advanced control software. Keysight, Keithley, Rigol, and Vitrek also provide DC load solutions for laboratory and production test applications.
