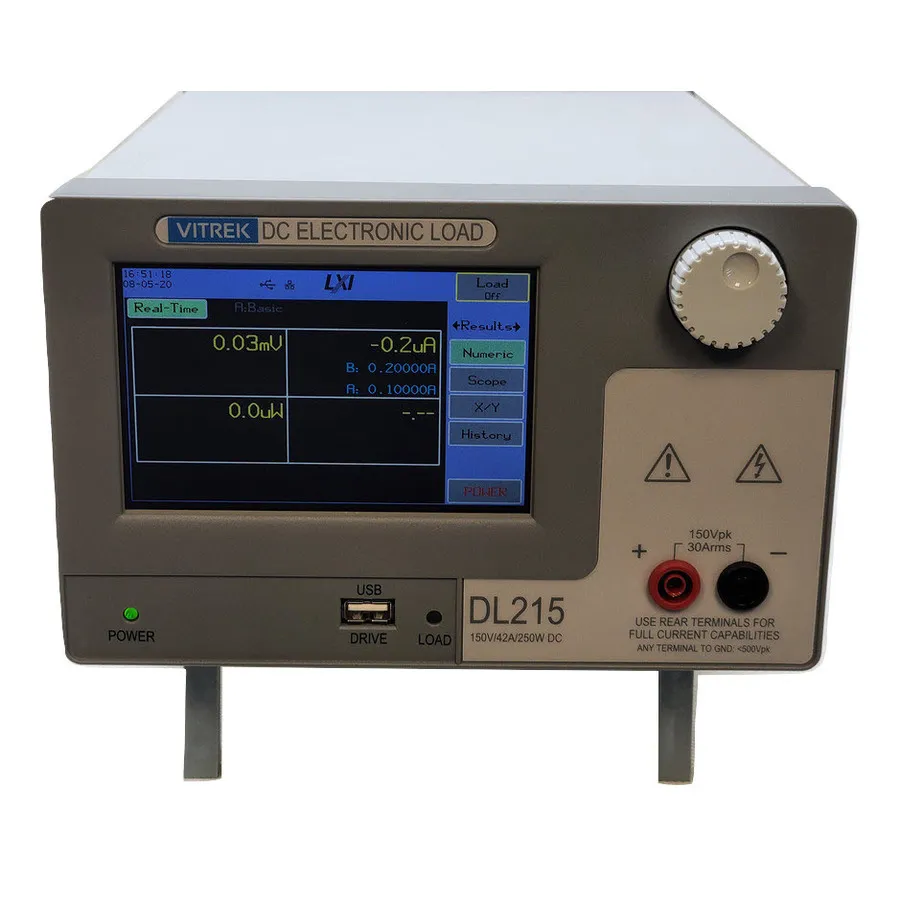

Vitrek DL215 DC Electronic Load
Request a quote
Vitrek DL215 is a 250W DC electronic load with 0.05% measurement accuracy, color touchscreen interface, and integrated oscilloscope and data logging.
Product details
| Model | DL215 |
| Manufacturer | Vitrek |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The Vitrek DL215 is a programmable DC electronic load with 150V maximum voltage, 42A maximum current, and 250W maximum power rating. It features high-accuracy measurements at ±0.05% for voltage and current, a user-friendly color touchscreen interface, and integrated oscilloscope and data logging capabilities.
Key Features
- High accuracy measurements at ±0.05% of voltage and current
- Color touchscreen display for quick setup and configuration
- Integrated oscilloscope for viewing current and voltage waveforms
- Historical data logging capability (graphical and numerical)
- Transient and non-linear loading modes with sweep capability
- Arbitrary loading sequence with up to 100 steps
- High-speed pulsed loading up to 100 kHz
- Wide range loading capability (>20:1 higher, >1000:1 lower than typical DC loads)
- Configurable rising and falling edge controls with soft-start capability
- Multiple interfaces including LAN, USB Device and Host, and Digital I/O
Applications
- LED driver testing
- Battery and battery charger testing
- Power supply and power adapter testing
- General-purpose R&D laboratory testing
Specifications
| Power Range Selector | 5,000-9,999 |
| Current Range Selector | 50-99.9 |
| Voltage Range Selector | 100-199 |
| Maximum Power | 7.25 kW |
| Maximum Current | 65 A |
| Maximum Voltage | 150 V |
| Input Voltage | 0 to 150 V |
| Mounting Type | Bench Top |
| Series | DL Series |
