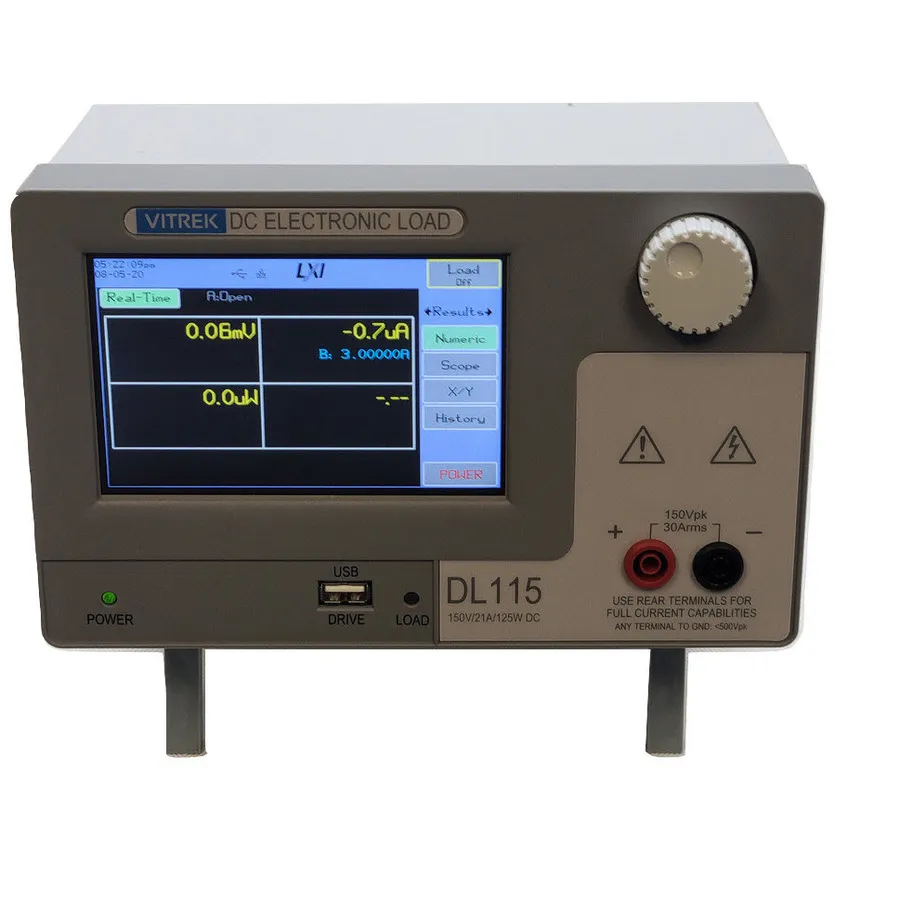

Vitrek DL115 DC Electronic Load

Overview

The Vitrek DL115 is a compact DC electronic load designed for accurate testing of power supplies, LED drivers, batteries, and battery chargers. With high-precision voltage and current measurements (0.05% accuracy), color touchscreen interface, and integrated oscilloscope and data logging, it combines ease of use with comprehensive test capabilities in a bench-friendly package.

Key Features

• High accuracy measurements (0.05%) of voltage and current within sweep steps as short as 20μs
• Color touchscreen display for quick setup and measurement configuration
• Transient and non-linear loading capabilities with sweep functionality
• High-speed pulsed loading up to 100kHz
• Arbitrary loading sequence with up to 100 steps for real-world load simulation
• Internal oscilloscope for viewing current and voltage waveforms
• Historical data logging with both graphical and numerical display
• Graphical X/Y plotting of V vs I and V vs P characteristics
• Fully configurable rising and falling edge controls and soft-start capability
• Comprehensive self-test for loading and measurement circuit verification
• Multiple interfaces: LAN, USB Device & Host, and Digital I/O
• Rack mount option available

Applications

• Power supply design and testing
• LED driver characterization
• Battery and battery charger testing
• Transient response analysis
• High-power load simulation and verification
