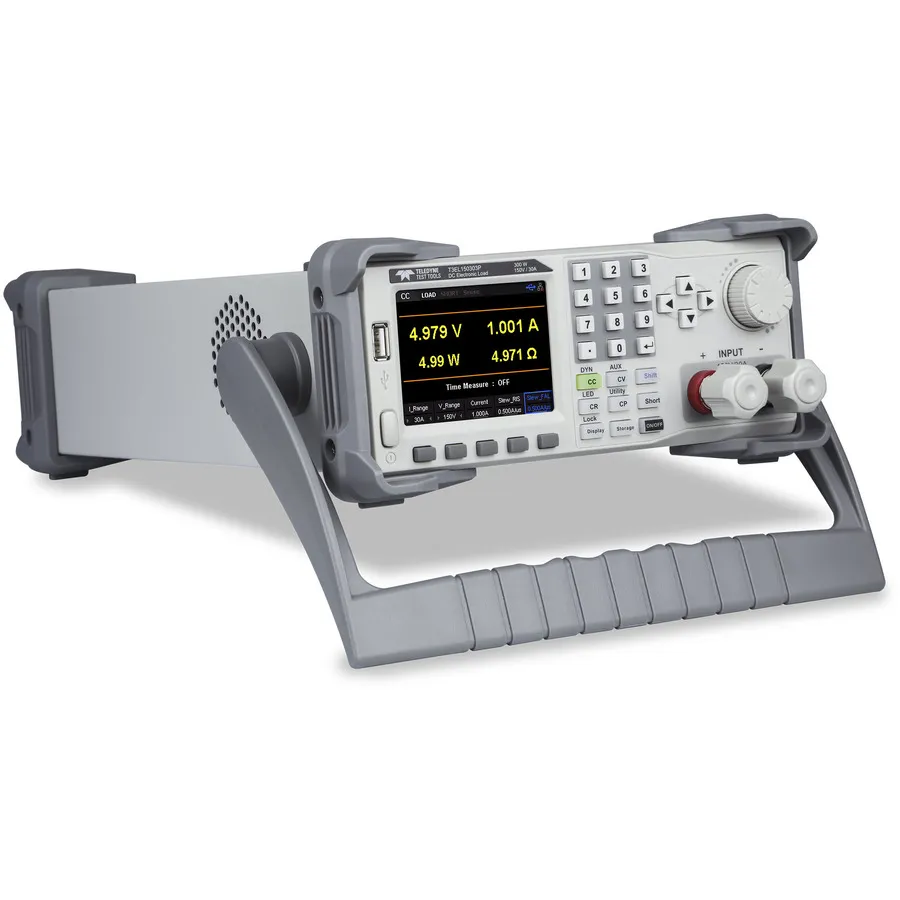

Teledyne LeCroy T3EL150302P DC Electronic Load

Overview

The T3EL150302P is a single-channel 200W DC electronic load designed for research, development, product validation, and quality assurance of low to medium power applications starting from 60mA. It provides a controllable load for power supply outputs and is fully programmable, enabling designers to test electronic power products such as batteries, portable chargers, and power supplies to ensure quality, reliability, and performance.

Key Features

• Single-channel DC 150V/30A with 200W total power capacity
• Four static modes: CC (Constant Current), CV (Constant Voltage), CR (Constant Resistance), CP (Constant Power)
• Dynamic CC mode with continuous, pulsed, and toggled operation at up to 25 kHz
• Dynamic CP mode up to 12.5 kHz and CV mode up to 0.5 Hz
• Voltage and current measurement speed up to 500 kHz
• Adjustable current rise time from 0.001 A/µs to 2.5 A/µs
• High-resolution readback: 1 mV and 1 mA minimum
• Short-circuit, battery test, CR-LED mode, and factory test functions
• 4-wire SENSE compensation for accurate load simulation
• List function supporting up to 100 editing steps
• Program function supporting 50 groups of steps
• Protection: OCP (Over Current), OVP (Over Voltage), OPP (Over Power), OTP (Over Temperature), LRV (Low Readback Voltage)
• External analog control with 0-10V monitoring for voltage and current
• 3.5-inch TFT-LCD display with multi-parameter status display
• Built-in RS232, USB, and LAN communication interfaces
• Waveform trend chart and file storage/recall functions
• Includes PC software with SCPI support and LabView driver

Applications

• Battery and power supply testing
• Portable charger validation
• Power electronics component qualification
• Bench testing and automated test environments

Included Accessories

• USB cable
• Power cord
• Quick start guide
• Calibration certificate
