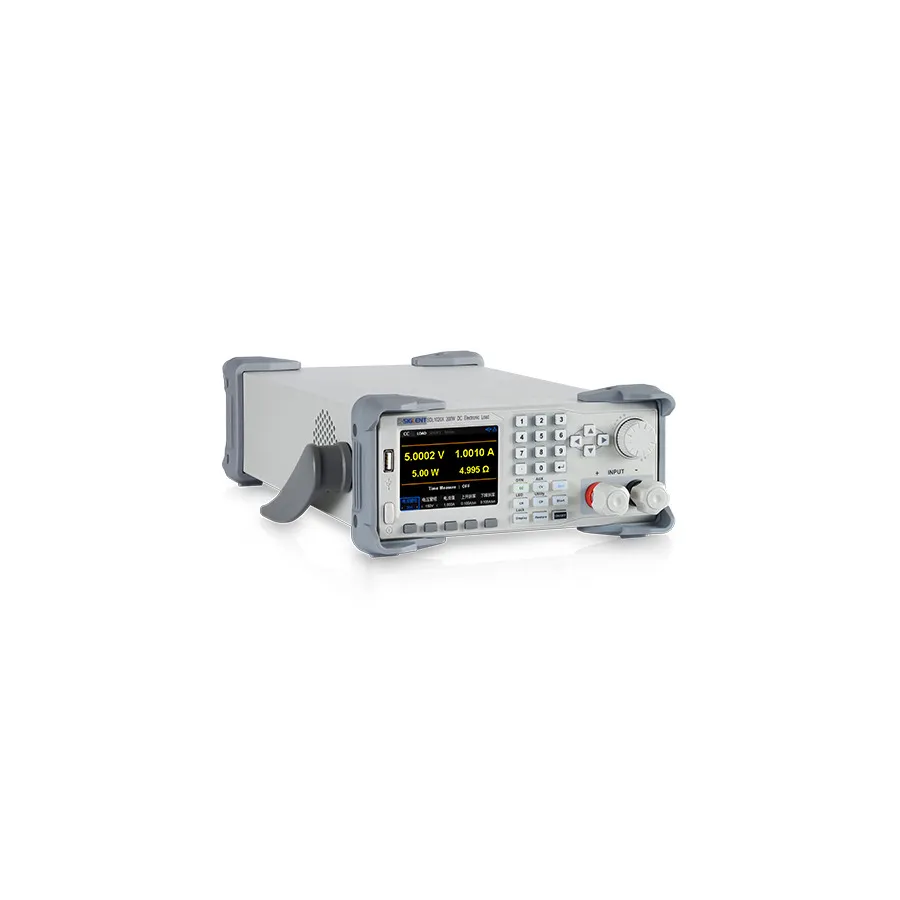

Siglent SDL1030X-E DC Electronic Load
Request a quote
Siglent SDL1030X-E is a 300W programmable DC electronic load with 0-150V input, 30A current, multiple operating modes, and remote control via RS232/USB/LAN.
Product details
| Model | SDL1030X-E |
| Manufacturer | Siglent |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The Siglent SDL1030X-E is a programmable DC electronic load designed for testing power supplies, batteries, and LED lighting systems. With 300W power dissipation and input range of 0-150V at up to 30A, it supports multiple operating modes for versatile testing applications across power, automotive, and aerospace industries.
Key Features
- 300W input power, 0-150V voltage range, 30A input current
- 1 mV and 1 mA minimum readback resolution
- CC, CV, CR, and CP operating modes
- Current slew rate from 0.001 A/μs to 2.5 A/μs
- Up to 500 kHz measuring speed
- 25 kHz CC dynamic mode frequency
- 3.5" TFT-LCD display with multi-parameter display
- RS232, USB, LAN communication interfaces
- External analog control capability
- SCPI and LabView driver support
Applications
- Power supply design and testing
- Battery and handheld device characterization
- Industrial electronics testing
- LED lighting system validation
- Automotive electronics applications
- Aerospace testing and qualification
Included Accessories
- USB Cable
- Quick Start Guide
- Calibration Certificate
- Power Cord
Specifications
| Power Range Selector | 200-499 |
| Current Range Selector | 30-49.9 |
| Voltage Range Selector | 100-199 |
| Maximum Power | 300 W |
| Maximum Current | 30 A |
| Maximum Voltage | 150 V |
| Input Voltage | 110 to 220 VAC |
| Mounting Type | Bench Top |
| Series | SDL1000X Series |
