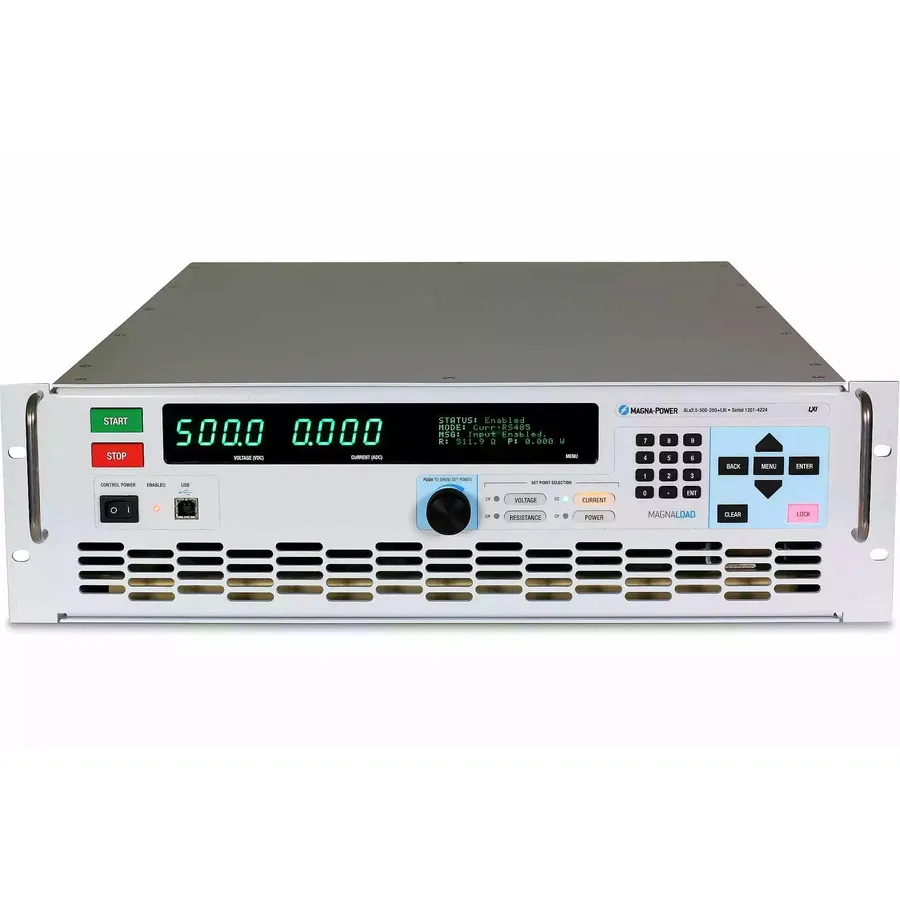

Magna Power ALx7.5-1000-225/208SP+LXI DC Electronic Load
Request a quote
Magna Power ALx7.5-1000-225/208SP+LXI DC electronic load with 1 kV/225A capacity, MOSFET linear topology, and LXI TCP/IP Ethernet connectivity.
Product details
| Model | ALx7.5-1000-225/208SP+LXI |
| Manufacturer | Magna Power |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The Magna Power ALx7.5-1000-225/208SP+LXI is a programmable DC electronic load from the ALx Series, featuring linear MOSFET-based dissipative technology for wide voltage-current operating range. This model is configured with LXI TCP/IP Ethernet connectivity and supports continuous full power operation up to 50°C ambient temperature.
Key Features
- MagnaLINK™ Distributed DSP Architecture
- 16-bit digital programming and monitoring resolution
- SCPI Remote Programming API for automated testing
- Multiple control modes: voltage, current, power, resistance, and shunt regulator
- 1 kV / 225A capacity with 7.5 kW maximum power
- LXI TCP/IP Ethernet for remote control and monitoring
- USB and RS485 local connectivity
- Digital plug-and-play master-slaving capability
- Programmable protection limits
- Designed and manufactured in the USA
Applications
- Testing DC power supplies and battery management systems
- Network-based automatic test equipment (ATE) systems
- Production and development testing of power electronics
Specifications
| Power Range Selector | 5,000-9,999 |
| Current Range Selector | 200-499 |
| Voltage Range Selector | 1,000-1,999 |
| Maximum Power | 7.5 kW |
| Maximum Current | 225 A |
| Maximum Voltage | 1000 V |
| Input Voltage | 0 to 208 VAC |
| Mounting Type | Rack Mount |
| Series | ALx Series |
| Display | Digital |
| Interface | LXI |
| Special Features | Single Phase Input |
