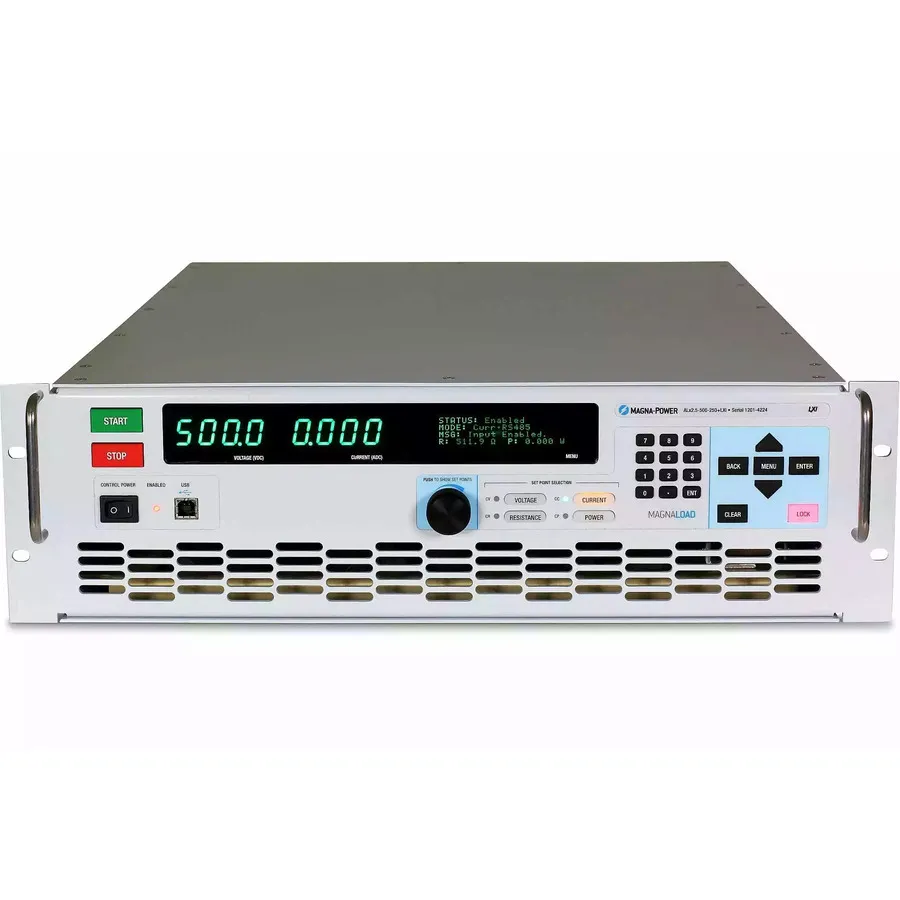

Magna Power ALx2.5-500-250/UI+LXI DC Electronic Load
Request a quote
Magna Power ALx2.5-500-250 DC electronic load with 500V/250A rating, 2.5kW power handling, linear MOSFET technology, and LXI network connectivity.
Product details
| Model | ALx2.5-500-250/UI+LXI |
| Manufacturer | Magna Power |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Magna Power ALx2.5-500-250 DC electronic load with 500V/250A rating, 2.5kW power handling, linear MOSFET technology, and LXI network connectivity.
Specifications
| Power Range Selector | 2,500-4,999 |
| Current Range Selector | 200-499 |
| Voltage Range Selector | 500-999 |
| Maximum Power | 2.5 kW |
| Maximum Current | 250 A |
| Maximum Voltage | 500 V |
| Input Voltage | 85 to 265 VAC |
| Mounting Type | Rack Mount |
| Series | ALx Series |
| Display | Digital |
| Interface | LXI |
| Special Features | Single Phase Universal Input |
