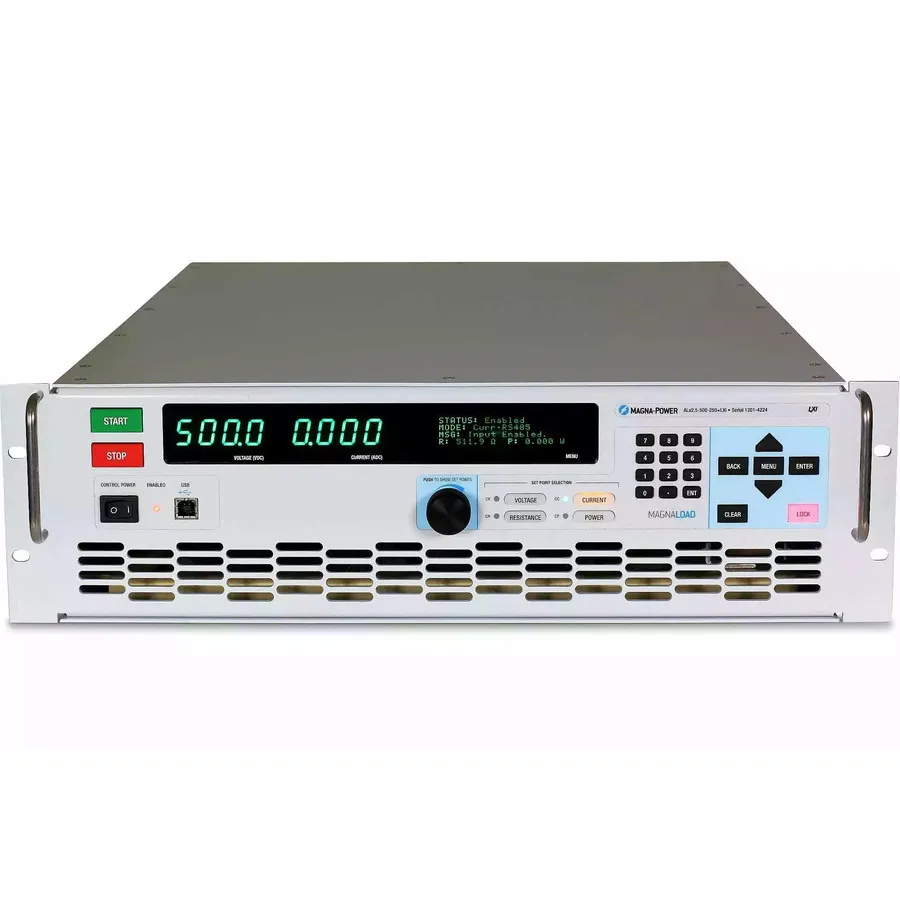

Magna Power ALx2.5-500-250/UI+GPIB DC Electronic Load
Request a quote
Magna Power ALx2.5-500-250 DC electronic load with 500V/250A rating, 2.5kW power handling, linear MOSFET technology, and SCPI/GPIB/Ethernet connectivity.
Product details
| Model | ALx2.5-500-250/UI+GPIB |
| Manufacturer | Magna Power |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The Magna Power ALx2.5-500-250 is a 2.5kW DC electronic load featuring linear MOSFET-based dissipation technology and wide voltage-current operating range. It provides multiple control modes including voltage, current, power, resistance, and shunt regulator operation with 16-bit digital resolution. The design ensures continuous full power operation in environments up to 50°C ambient temperature.
Key Features
- Linear MOSFET topology with wide voltage-current-power operating profile
- MagnaLINK™ Distributed DSP Architecture with 16-bit digital resolution
- SCPI Remote Programming API
- Multiple control modes: voltage, current, power, resistance, and shunt regulator
- USB, RS485, GPIB IEEE-488, and LXI TCP/IP Ethernet connectivity
- Digital plug-and-play master-slaving
- Programmable protection limits and configurable user I/O
- USA designed and manufactured
Specifications
| Power Range Selector | 2,500-4,999 |
| Current Range Selector | 200-499 |
| Voltage Range Selector | 500-999 |
| Maximum Power | 2.5 kW |
| Maximum Current | 250 A |
| Maximum Voltage | 500 V |
| Input Voltage | 85 to 265 VAC |
| Mounting Type | Rack Mount |
| Series | ALx Series |
| Interface | GPIB IEEE-488,USB,RS485,MagnaLINK |
| Rack Space | 3U |
| Special Features | Single Phase Universal Input |
