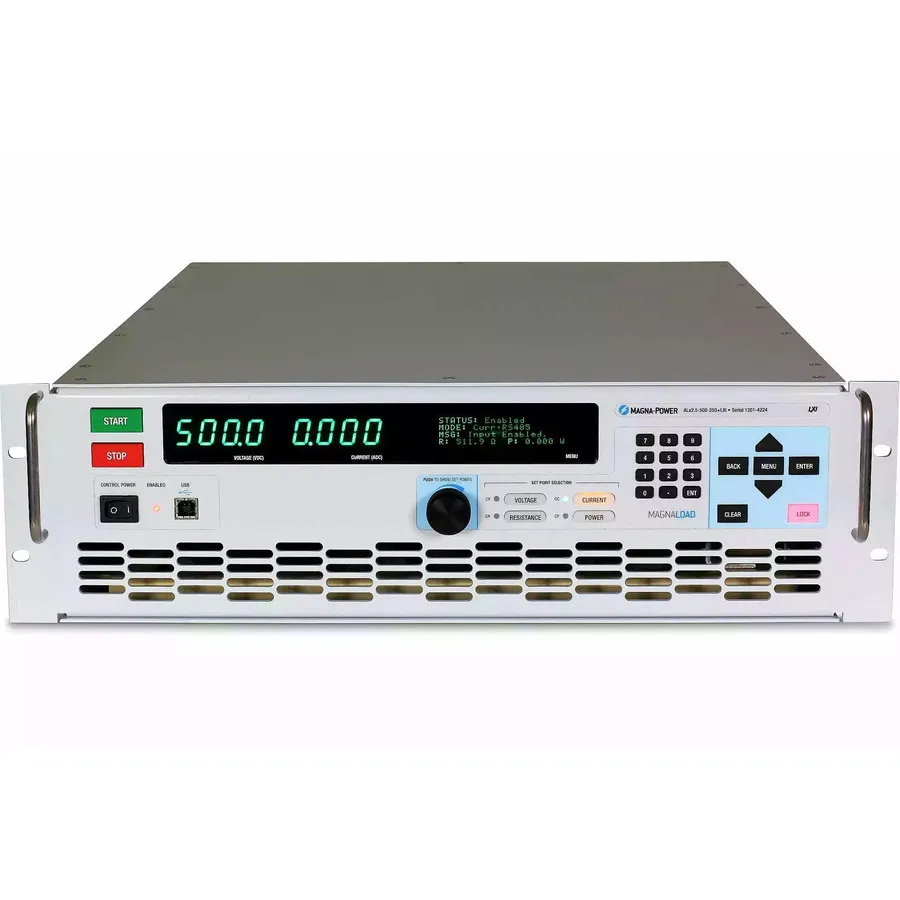

Magna Power ALx2.5-500-250/UI+EIP DC Electronic Load

Overview

The Magna Power ALx2.5-500-250 is a 2.5kW DC electronic load rated for 500V maximum voltage and 250A maximum current. The ALx Series utilizes linear MOSFET-based dissipative elements to achieve a wide voltage-current operating range within the model's maximum power rating. Using proven heat management technology from Magna Power's programmable DC power supplies, the ALx Series ensures reliable operation with continuous full-power capability in environments up to 50°C ambient temperature.

The ALx Series uses MOSFETs operated in the linear region to provide complete control over the full VA rating. Closed-loop control circuitry enables multiple MOSFETs to share load current equally, delivering among the industry's widest full-power operating ranges for this product class.

Key Features

• 500V maximum voltage, 250A maximum current, 2.5kW power rating
• MagnaLINK™ Distributed DSP Architecture with unified digital control across processing stages
• 16-bit digital resolution for programming and monitoring
• SCPI Remote Programming API with full instrument control support
• Multiple control modes: voltage, current, power, resistance, and shunt regulator
• Integrated connectivity: USB, RS485, dual MagnaLINK™, with optional LXI TCP/IP Ethernet or IEEE-488 GPIB
• Digital plug-and-play master-slave capability for expandable configurations
• Programmable protection limits and configurable external analog-digital user I/O
• Designed and manufactured in the USA

Applications

• Power supply testing and validation
• Renewable energy system testing and simulation
• Battery charger and power converter testing
• Electronic component stress testing
