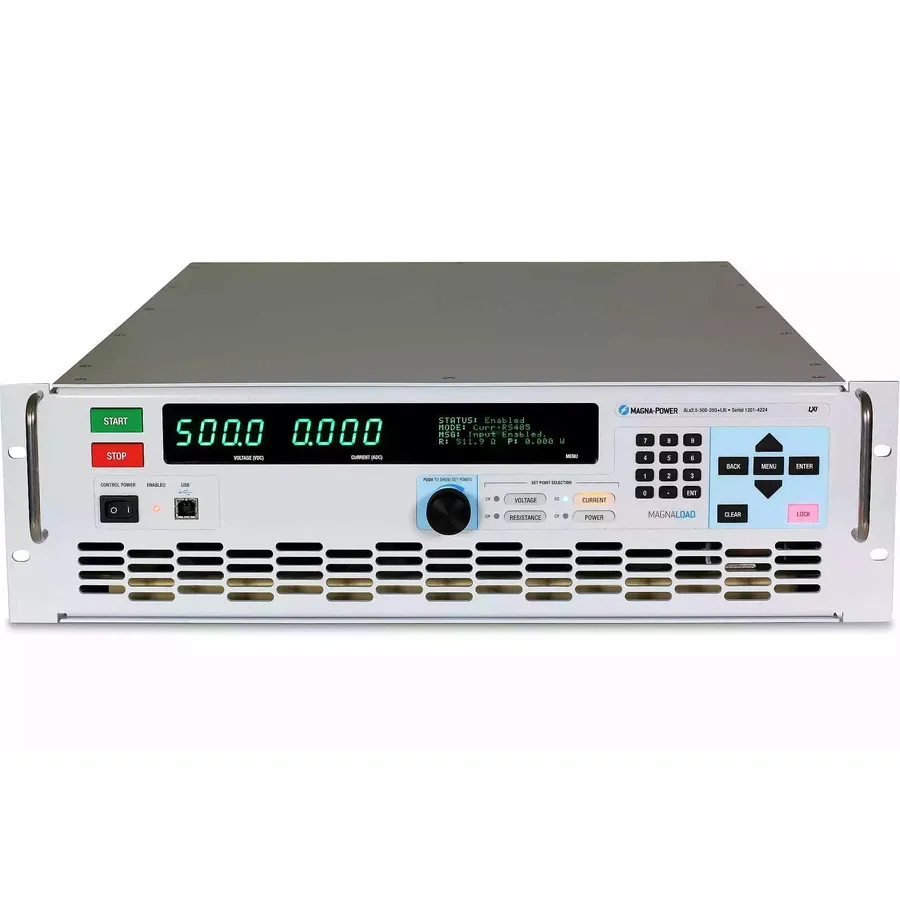

Magna Power ALx2.5-1000-75/UI+LXI DC Electronic Load
Request a quote
Magna Power ALx2.5-1000-75 — 1kV/75A air-cooled DC electronic load with MagnaLINK DSP control and LXI Ethernet connectivity.
Product details
| Model | ALx2.5-1000-75/UI+LXI |
| Manufacturer | Magna Power |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The Magna Power ALx Series MagnaLOAD is an air-cooled DC electronic load utilizing linear MOSFET-based dissipative elements to achieve exceptionally wide voltage-current operating ranges within the unit's power rating. Designed for demanding applications from power supply validation to renewable energy characterization, the ALx Series provides reliable operation at ambient temperatures up to 50°C with conservative thermal management derived from Magna Power's high-density programmable supply designs.
Key Features
- MagnaLINK™ Distributed DSP Architecture with closed-loop control and current sharing
- 16-bit digital programming and monitoring resolution
- Multiple control modes including voltage, current, power, resistance, and shunt regulator
- SCPI remote programming API with LabVIEW™ and IVI driver support
- Integrated USB, RS485, dual MagnaLINK™ ports with LXI TCP/IP Ethernet connectivity
- Digital plug-and-play master-slaving for system scalability
- Programmable protection limits with adjustable slew rates
- 25-pin D-Sub external user I/O with configurable analog and digital signals
- Designed and manufactured in the USA
Applications
- DC power supply testing and validation
- Battery charging and discharge profiling
- Renewable energy system testing and characterization
- DC source and load simulation
- Industrial power equipment testing
Specifications
| Power Range Selector | 2,500-4,999 |
| Current Range Selector | 50-99.9 |
| Voltage Range Selector | 1,000-1,999 |
| Maximum Power | 2.5 kW |
| Maximum Current | 75 A |
| Maximum Voltage | 1000 V |
| Input Voltage | 85 to 265 VAC |
| Mounting Type | Rack Mount |
| Series | ALx Series |
| Interface | LXI,USB,RS485,MagnaLINK |
| Rack Space | 3U |
| Special Features | Single Phase Universal Input |
