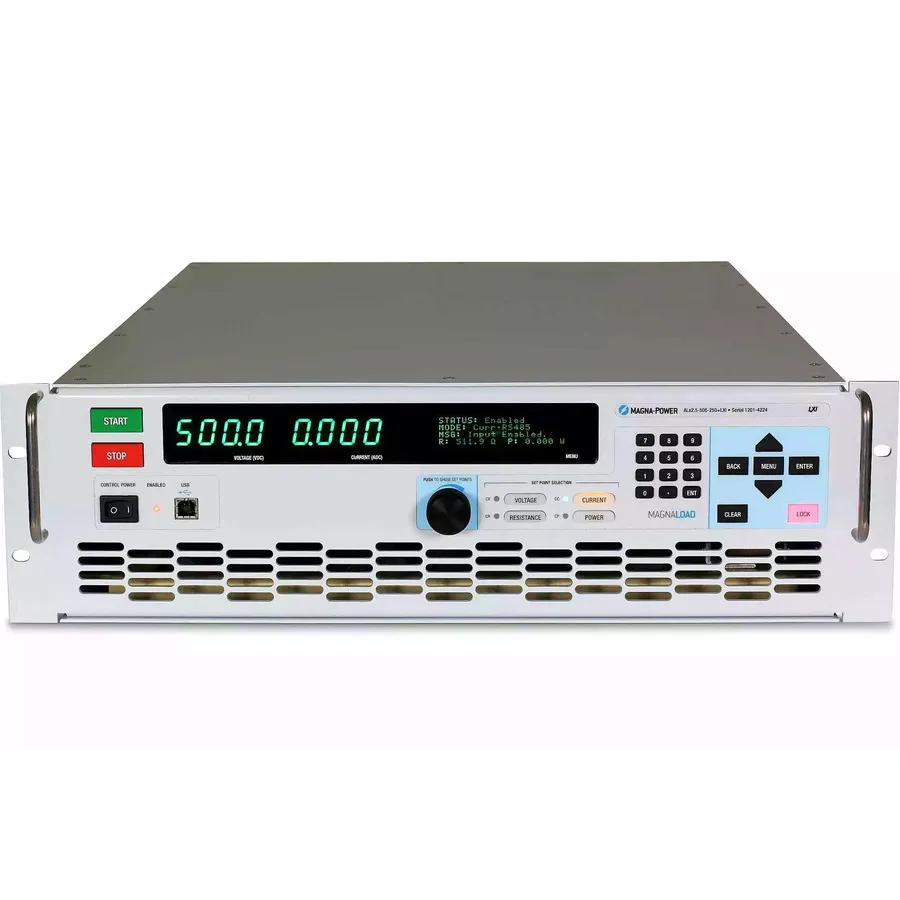

Magna Power ALx2.5-1000-75/UI+EIP DC Electronic Load
Request a quote
Magna Power ALx2.5-1000-75/UI+EIP is a 2.5kW programmable DC electronic load with 1000V/75A rating, universal AC input, and Ethernet interface for remote control.
Product details
| Model | ALx2.5-1000-75/UI+EIP |
| Manufacturer | Magna Power |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The Magna Power ALx2.5 is a compact 2.5kW programmable DC electronic load designed for testing and characterization of DC power sources in laboratory and production environments. Utilizing linear MOSFET-based dissipative elements, it delivers a wide voltage-current operating range and is equipped with universal AC input for global deployment.
Key Features
- MagnaLINK™ Distributed DSP Architecture for flexible control
- 16-bit digital programming and monitoring resolution
- SCPI Remote Programming API for automation and integration
- Multiple control modes: voltage, current, power, resistance, and shunt regulator
- Wide voltage-current operating range within the 2.5kW power rating
- Universal AC input: 85-265VAC, single-phase
- Integrated USB, RS485, and Ethernet interface protocol for remote access
- Programmable protection limits and external analog-digital I/O
- Designed and manufactured in the USA
Applications
- DC power supply testing and characterization
- Battery and cell discharge testing
- Power electronics development and validation
- Remote and distributed test systems
Specifications
| Power Range Selector | 2,500-4,999 |
| Current Range Selector | 50-99.9 |
| Voltage Range Selector | 1,000-1,999 |
| Maximum Power | 2.5 kW |
| Maximum Current | 75 A |
| Maximum Voltage | 1000 V |
| Input Voltage | 85 to 265 VAC |
| Mounting Type | Rack Mount |
| Series | ALx Series |
| Interface | EIP,USB,RS485,MagnaLINK |
| Rack Space | 3U |
| Special Features | Single Phase Universal Input |
