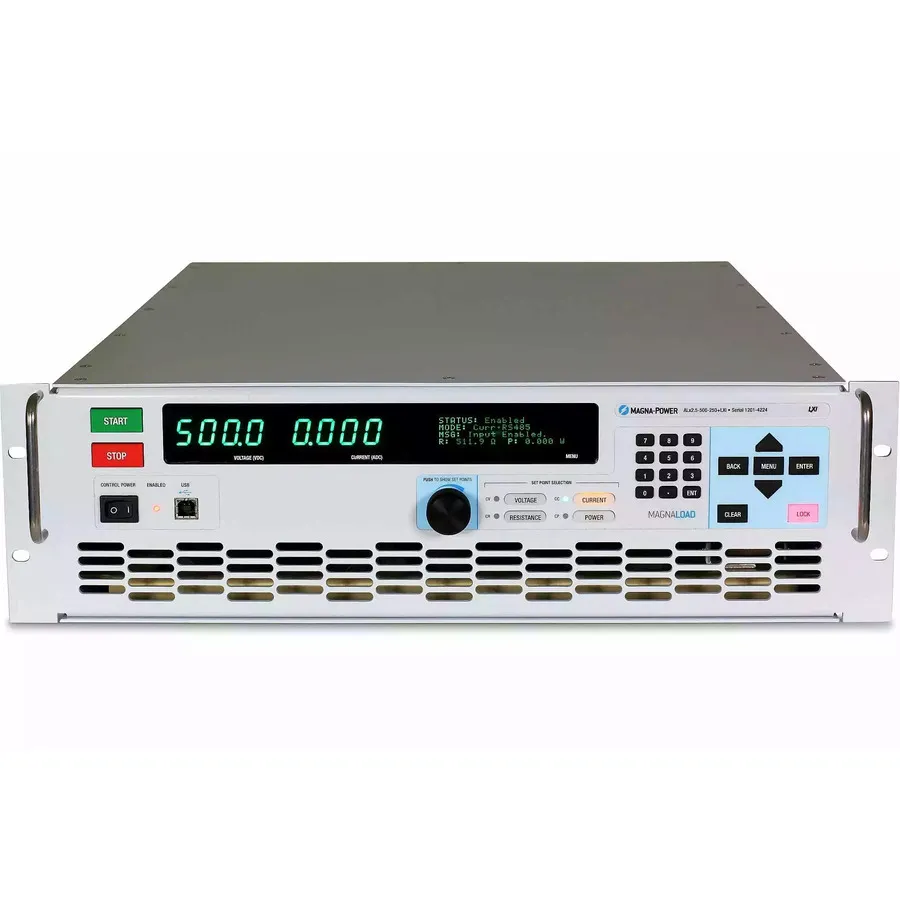

Magna Power ALX1.25-500-125/UI DC Electronic Load

Overview

The ALx Series MagnaLOAD utilizes conventional linear MOSFET-based dissipative elements, allowing the series to achieve a very wide voltage-current operating range within the model's maximum power rating. Using the same heat management innovations developed for Magna-Power's high density programmable DC power supplies, the ALx Series' conservative cooling ensures long product life with continuous full power operation in environments up to 50°C ambient operating temperature. The ALx Series uses MOSFETs for power dissipation, delivering among the industry's widest full-power operating for its product class, operated in the linear region to allow full power and full control over the entire VA rating of the product.

Key Features

• MagnaLINK™ Distributed DSP Architecture
• 16-bit digital programming and monitoring resolution
• SCPI Remote Programming API
• Many control modes, including: voltage, current, power, resistance, and shunt regulator
• Wide voltage-current-power operating profile
• Integrated front and rear full control USB ports, RS485, and dual MagnaLINK™ ports, with LXI TCP/IP Ethernet and IEEE-488 GPIB available
• Digital plug-and-play master-slaving
• Programmable protection limits
• Configurable external analog-digital user I/O
• Designed and manufactured in the USA

Applications

• Power supply testing and characterization
• Battery charging system verification
• Photovoltaic (solar) panel evaluation
• Fuel cell testing
• Power electronic device development and validation
