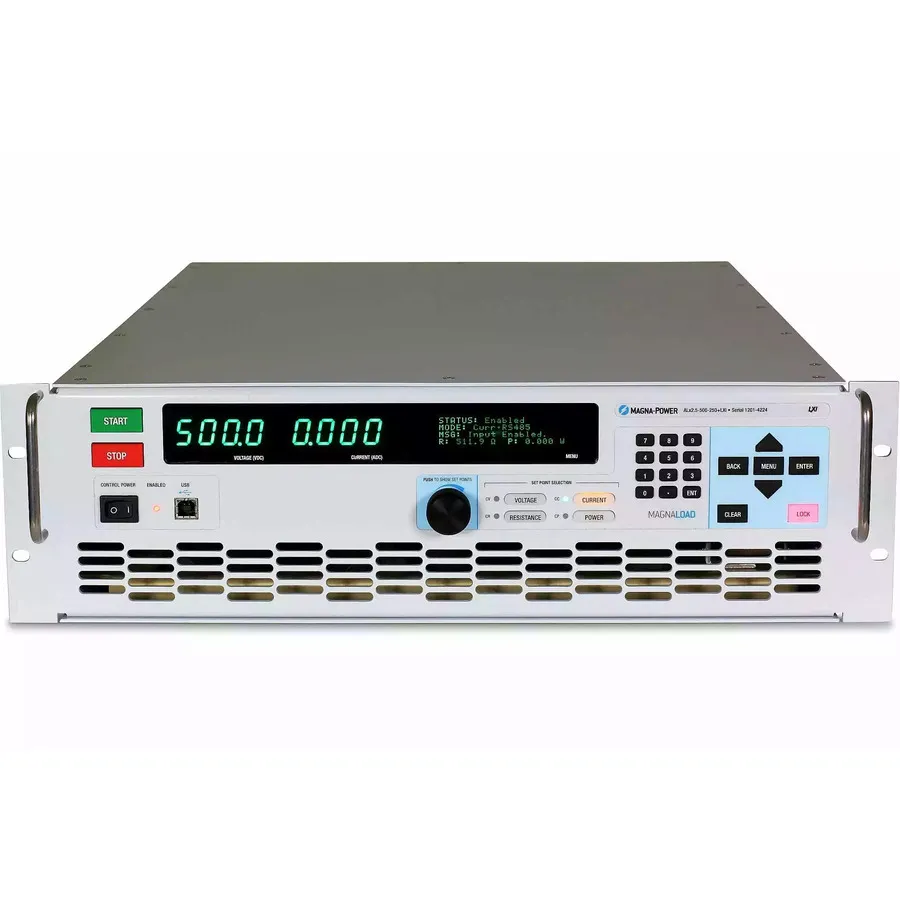

Magna Power ALX1.25-200-300/UI DC Electronic Load

Overview

The Magna Power ALX1.25-200-300/UI is a 1.25kW DC electronic load designed for testing medium-voltage power supplies, battery chargers, and DC power systems. With a maximum voltage of 200V and maximum current of 300A, this air-cooled instrument provides wide operating range capabilities for laboratory and production environments. The ALx Series utilizes linear MOSFET-based dissipative elements with distributed MagnaLINK™ DSP architecture for precise digital control and measurement.

The unit features integrated arbitrary waveform generation with up to 1024 programmable points, enabling complex load profiles for comprehensive power supply testing. Built for continuous full-power operation in ambient temperatures up to 50°C, the ALx Series delivers reliable performance with 16-bit digital resolution and multiple control modes including voltage, current, power, resistance, and shunt regulator functions.

Key Features

• MagnaLINK™ Distributed DSP Architecture with closed-loop digital control
• 16-bit digital programming and monitoring resolution
• SCPI Remote Programming API and standard programming support
• Multiple control modes: voltage, current, power, resistance, and shunt regulator
• Integrated arbitrary waveform generation up to 1024 points per function
• Wide voltage-current-power operating profile within 1.25kW rating
• Full control via USB, RS485, and dual MagnaLINK™ ports with optional interfaces
• Digital plug-and-play master-slaving for expandable multi-unit configurations
• Programmable protection limits and configurable external analog-digital user I/O
• Designed and manufactured in the USA

Applications

• Battery charger and power supply testing and validation
• Step-load and transient response testing
• Power conversion and efficiency characterization
• Shunt regulator and load dump testing
• Pulsed load profile simulation
• Automated production test and burn-in applications
