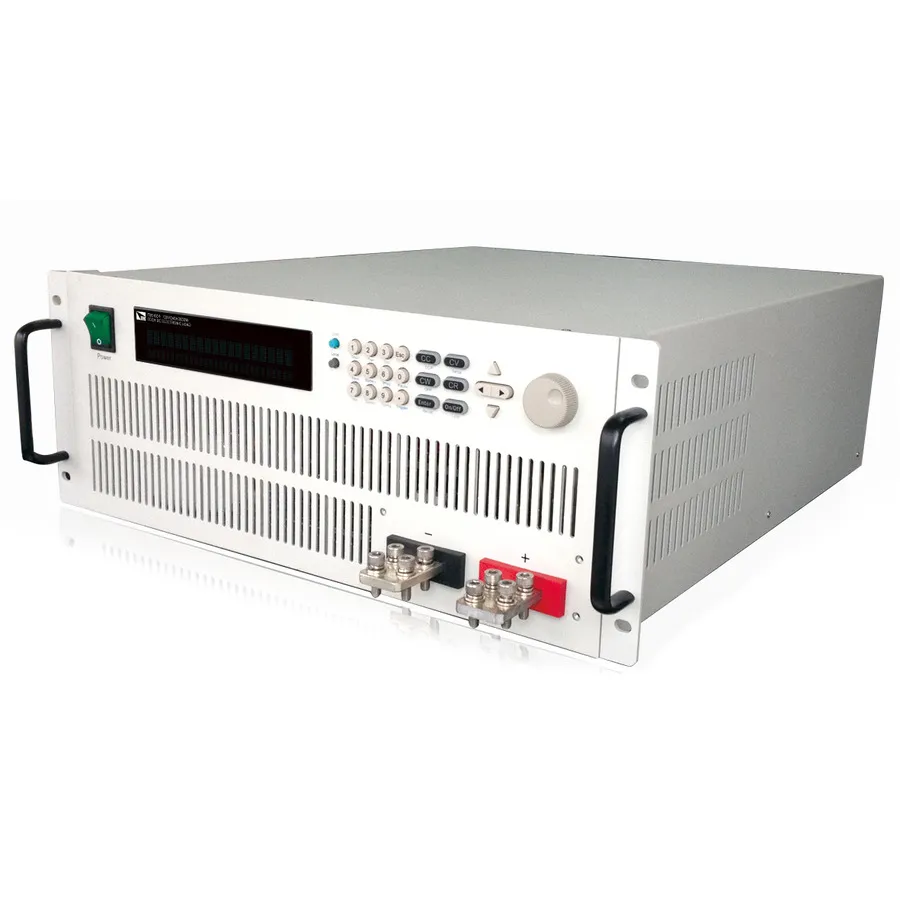

ITECH IT8516C+ Rack Mount DC Electronic Load
Request a quote
ITECH IT8516C+ is a 3000W programmable DC electronic load (240A @ 120V) with CV, CC, CR, CP modes, multi-function battery testing, and built-in RS232/USB for test automation.
Product details
| Model | IT8516C+ |
| Manufacturer | ITECH |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The ITECH IT8516C+ is a high-power rack-mount programmable DC electronic load from the IT8500+ series. Designed for demanding middle and high-end applications, it provides comprehensive testing capabilities for power supplies, batteries, DC-DC converters, and battery chargers. Built-in RS232 and USB interfaces enable automated testing workflows and system integration.
Key Features
- Four operating modes: CV, CC, CR, CP
- Power capacity: 3000W, 240A at 120V
- Battery, automatic, OPP, OCP, and CR-LED test functions
- Dynamic mode up to 10 kHz
- Voltage and current measurement resolution: 0.1 mV / 0.1 mA
- Remote sense capability
- Short circuit simulation function
- Current monitoring
- Power-off memory with 100 group capacity
- Built-in RS232 and USB interfaces
- Optional RS485 interface
Applications
- High-power automated test systems
- Heavy-duty power supply validation
- Large-capacity battery and charger testing
- System-level DC-DC converter evaluation
Specifications
| Power Range Selector | 2,500-4,999 |
| Current Range Selector | 200-499 |
| Voltage Range Selector | 100-199 |
| Maximum Power | 3 kW |
| Maximum Current | 240 A |
| Maximum Voltage | 120 V |
| Mounting Type | Rack Mount |
| Series | IT8500+ Series |
| Includes | Power cord, Factory calibration certificate |
| Interface | USB,RS232 |
| Number of Outputs | Single Output |
