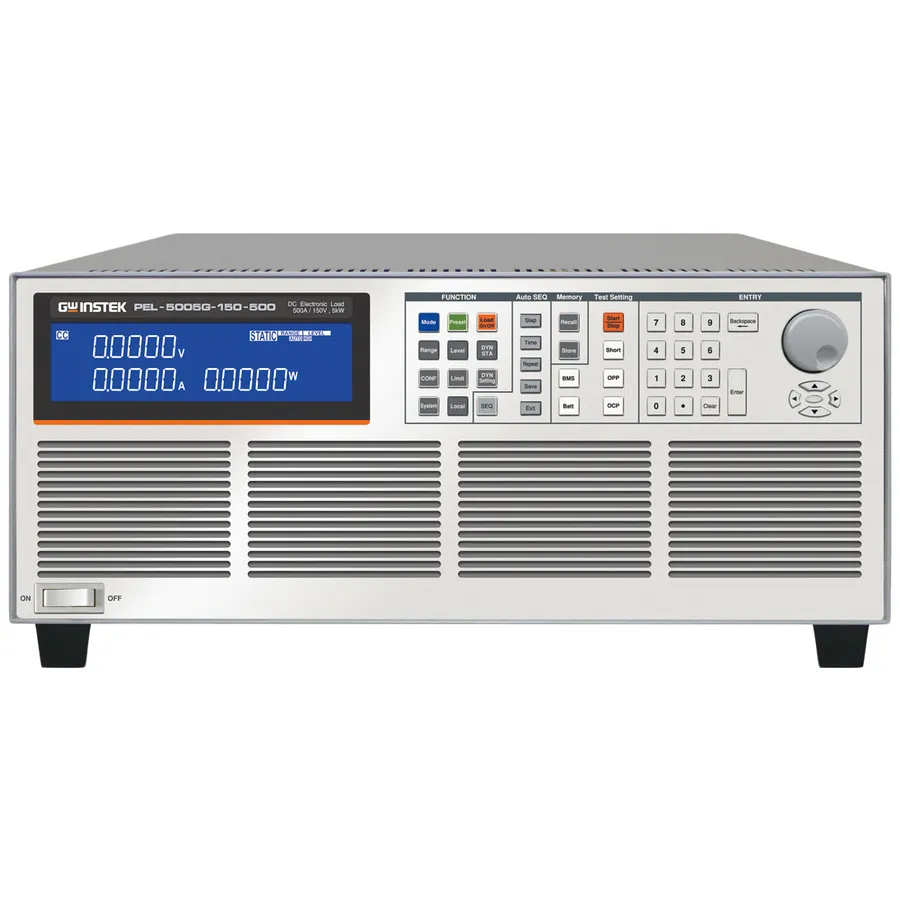

GW Instek PEL-5005G-150-500 High Power DC Electronic Load

Overview

The GW Instek PEL-5005G-150-500 is a high-power DC electronic load designed for testing and verifying batteries, electric vehicle chargers, and energy storage systems. This single-channel unit delivers 5kW power with 150V max voltage and 500A max current. The turbo mode function enables up to 1.5 times rated power or current for up to 2 seconds, ideal for transient testing applications.

Key Features

• 5kW power rating, 150V max voltage, 500A max current
• Turbo mode: 7.5kW/150V/750A for up to 2 seconds
• Multiple operation modes: CC, CR, CV, CP, CV+CL, CV+PL, Dynamic, Short Circuit
• Supports up to 8 units in parallel for maximum 48kW total power
• Built-in battery discharge modes: CV+Current Limit, CV+Power Limit, CC, CP
• Battery management system (BMS) testing capability
• SEQ Load Mode with programmable step changes (0.02 to 999,000 ms)
• Surge test mode for capacitive load transient testing
• Built-in slow starter protects the load and saves installation costs
• 5-digit V/A/W meter on large LCD display
• Communication interfaces: GPIB, RS232, USB, LAN

Applications

• Battery and energy storage system testing
• Electric vehicle charger verification
• EV battery discharge and capacity testing
• Power supply and converter testing
• Transient and surge load simulation

Included Accessories

• DC Electronic Load unit
• Operation manual
• Banana plugs
• BNC-BNC cable
• HD-DSUB 15-pin parallel wire
• PEL-028 handles
• PEL-031 rack mount kit
