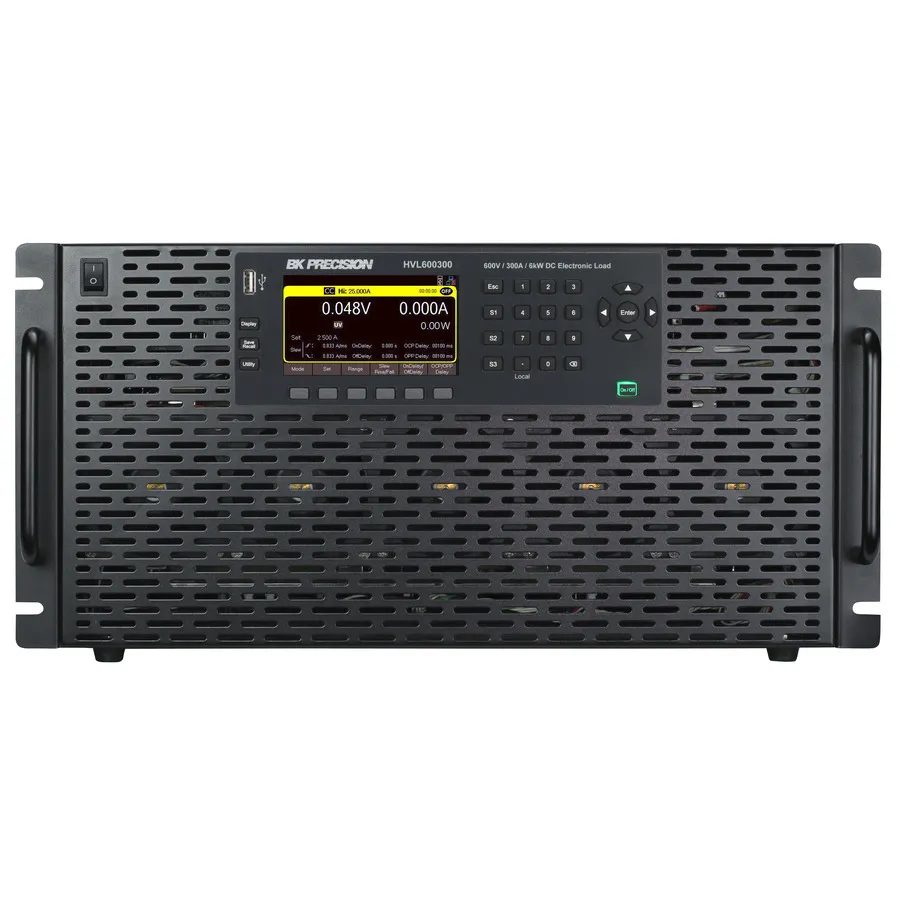

B&K Precision HVL600300 High Voltage DC Electronic Load
Request a quote
B&K Precision HVL600300 — 6kW DC electronic load with 600V/300A rating, designed for high-current testing of power supplies and batteries.
Product details
| Model | HVL600300 |
| Manufacturer | B&K Precision |
| Category | DC Electronic Loads |
| Availability | Made to order |
Description
Overview
The B&K Precision HVL600300 is a high-voltage DC electronic load designed for high-performance testing applications. With a 6kW power capacity supporting a 600V/300A operating range, it delivers exceptional power density in a compact 5U rack form factor. It supports dynamic loading conditions suitable for evaluating DC-DC converters, batteries, battery chargers, photovoltaic arrays, and other high-power DC sources in automated test environments.
Key Features
- 6 kW power capacity with 600V/300A rating
- 5U rack-mount form factor with compact design
- CC/CV/CR/CW operating modes for flexible testing
- Continuous, pulse, and toggle transient operation up to 10 kHz
- Multiple interfaces: USB (USBTMC), LAN, RS232, and GPIB with SCPI support
- Advanced protection: overvoltage (OVP), overcurrent (OCP), overpower (OPP), and reverse voltage protection
- Front panel USB host port for direct data logging to flash drives
- 4.3-inch LCD screen for front panel control
- Operating software and battery test software included
- LabVIEW drivers provided for custom integration
Applications
- Testing DC-DC converters and power supplies
- Battery discharge testing and characterization
- EV battery and charging system validation
- Photovoltaic array evaluation
- Automated test equipment (ATE) integration
- Charging station testing
Specifications
| Power Range Selector | 5,000-9,999 |
| Current Range Selector | 200-499 |
| Voltage Range Selector | 500-999 |
| Maximum Power | 6 kW |
| Maximum Current | 300 A |
| Maximum Voltage | 600 V |
| Input Voltage | 100 to 240 VAC |
| Mounting Type | Rack Mount |
| Series | HVL Series |
| Includes | Power cord, removable input protection cover, and certificate of calibration |
| Interface | USB,LAN,RS232,GPIB |
| Rack Space | 5U |
