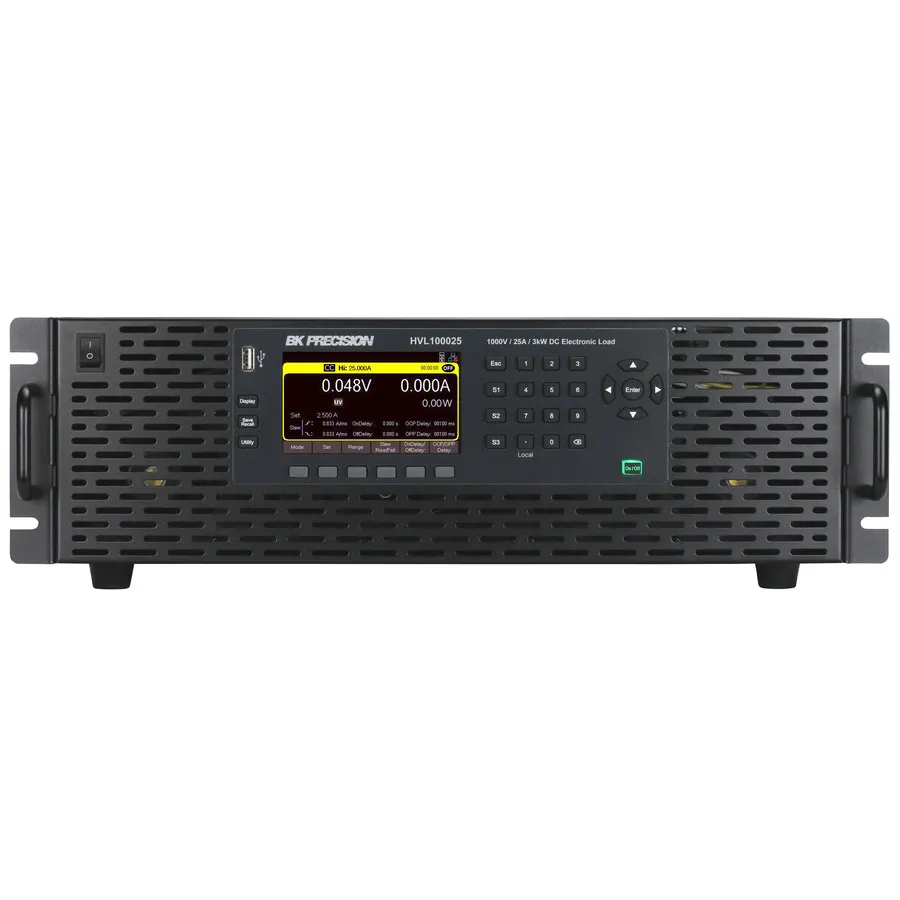

B&K Precision HVL100025 DC Electronic Load

Overview

The B&K Precision HVL100025 is a high-voltage DC electronic load designed for applications requiring precise power sinking and load testing. With a power rating of 3 kW at up to 1000 V and 25 A, the HVL100025 is ideal for testing DC-DC converters, battery chargers, photovoltaic arrays, and other high-power DC sources. The compact 3U rack form factor provides high power density suitable for automated test equipment (ATE) systems.

Key Features

• 1000 V / 25 A rated voltage and current
• 3 kW power in 3U form factor (6 kW available in 5U)
• CC/CV/CR/CW operating modes for flexible load simulation
• Continuous, pulse, and toggle transient operation modes
• Transient switching up to 10 kHz in CC mode
• Advanced list mode programming for complex load sequences
• USB (USBTMC), LAN, RS232, and GPIB interfaces standard
• 4.3-inch LCD screen with front panel control
• Overvoltage, overcurrent, and overpower protection
• Parallel operation up to 10 units for 60 kW total power
• LabVIEW driver included
• cTUVus certification

Applications

• DC-DC converter testing and characterization
• Battery and battery charger discharge testing
• Photovoltaic array evaluation
• Electric vehicle (EV) battery testing
• On-board EV charger validation
• Charging station testing
• Automated test equipment (ATE) applications

Included Accessories

• Rack-mount brackets with handles
• Operating software with remote control and monitoring
• Battery test software with data logging
