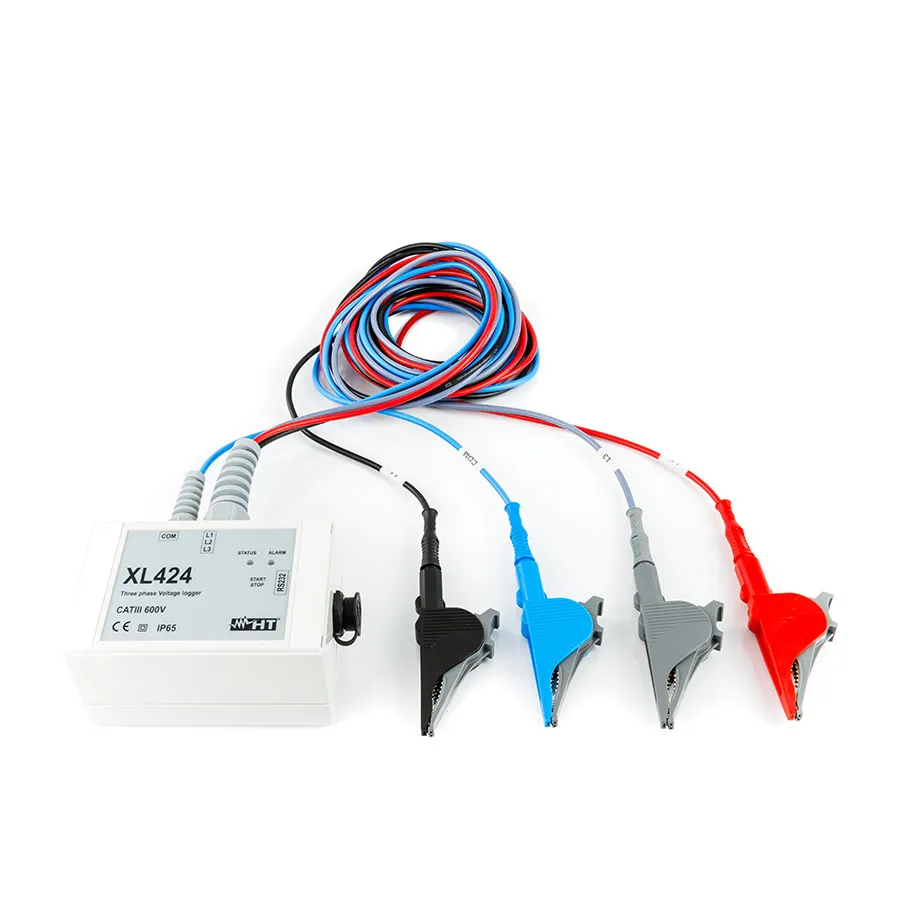

HT Instruments XL424 Voltage Data Logger
Request a quote
HT Instruments XL424 is a 3-phase AC voltage data logger with TRMS measurement up to 600V, IP65 housing, and 90-day recording capability.
Product details
| Model | XL424 |
| Manufacturer | HT Instruments |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The HT Instruments XL424 is a portable and robust voltage data logger designed for monitoring AC voltage in three-phase, 4-wire electrical systems. It provides advanced memory management and extended recording capability for industrial applications requiring long-term voltage monitoring in harsh environments.
Key Features
- TRMS AC voltage measurement up to 600V
- Designed for three-phase 4-wire electric systems
- Advanced memory algorithm supports up to 90 days of recording
- Selectable sampling intervals: 1, 6, 30, and 60 seconds
- Automatic re-sampling optimizes memory usage
- Internal memory for data storage and later analysis
- Dedicated PC software for data download and visualization
- Safety alligator clip cables for secure connections
- IP65-rated housing for reliable operation in harsh environments
- Adhesive strap for flexible installation placement
Applications
- Mains voltage evaluation and monitoring
- Load unbalance detection in three-phase systems
- Voltage stability analysis
- Electrical system diagnostics
Included Accessories
- Safety alligator clip cables
- PC software for data management
- Adhesive strap for installation
Specifications
| Battery Type | 2x1.5V alkaline battery type LR6-AA-AM3-MN1500 |
| Height | 43 mm |
| Includes | Adhesive Velcro 50 x 70 cm Set of 2 alligator clips B/B (XL423 only) Set of 4 alligator clips B/B/R/G (XL424 only) Serial cable Carrying bag Batteries Quick reference guide |
| Operating Temperature | -20 To 60°C |
| Product Type | Data Loggers |
| Storage Temperature | -20 To 60°C |
| True RMS | Yes |
