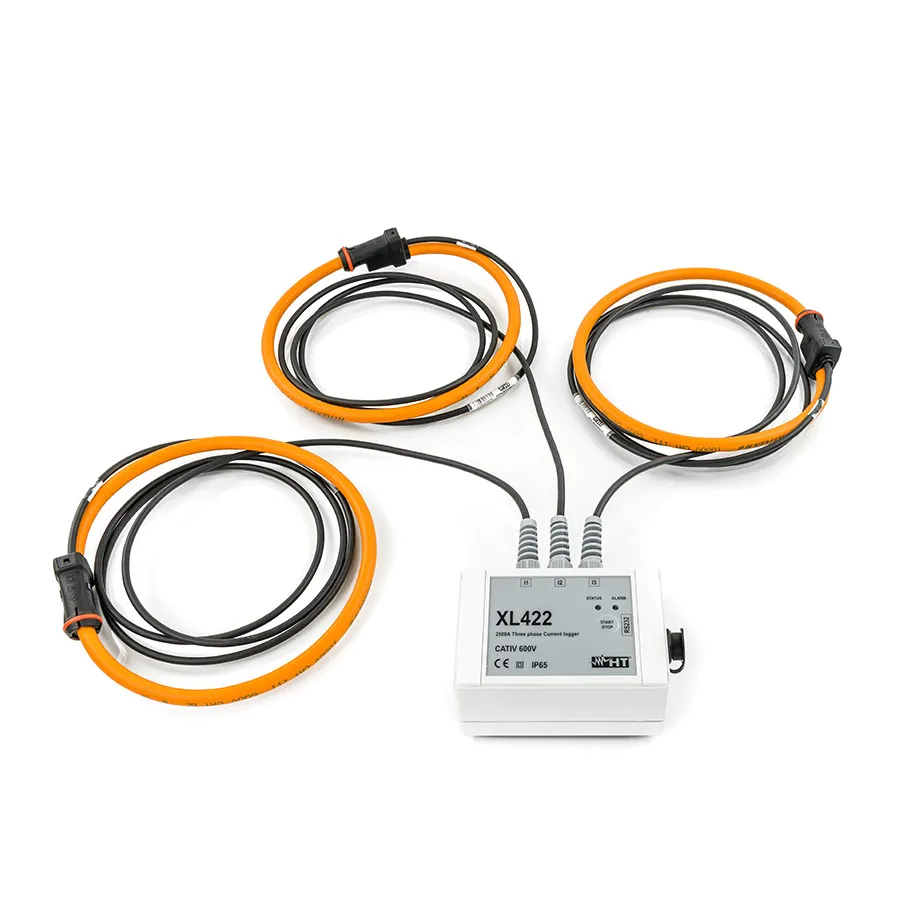

HT Instruments XL422 Current Data Logger
Request a quote
HT Instruments XL422 is a 3-phase AC current data logger measuring TRMS current up to 2500A with IP65 housing and up to 90 days of recording capability.
Product details
| Model | XL422 |
| Manufacturer | HT Instruments |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The HT Instruments XL422 is a robust three-phase current data logger designed for long-term AC current monitoring in industrial and commercial electrical systems. It measures true RMS AC current up to 2500A in 3-phase, 3-wire configurations and provides reliable operation in harsh environmental conditions.
Key Features
- TRMS AC current measurement up to 2500A
- Integrated flexible clamp jaws for easy installation on large cables and busbars
- Selectable sampling intervals: 1, 6, 30, or 60 seconds
- Automatic re-sampling algorithm optimizes storage for up to 90 days of continuous recording
- Internal memory for data storage and PC-based analysis
- Dedicated PC software for configuration and data visualization
- IP65-rated housing for durability in harsh environments
- Adhesive strap for flexible installation
Applications
- Load monitoring and analysis
- Transformer sizing and evaluation
- Energy diagnostics and efficiency studies
- Three-phase system troubleshooting
Included Accessories
- PC software for data management and analysis
- Adhesive strap for installation
Specifications
| Battery Type | 2x1.5V alkaline battery type LR6-AA-AM3-MN1500 |
| Height | 43 mm |
| Includes | Adhesive Velcro 50 x 70 cm Integrated flexible clamp, 3 pcs Serial cable C2004 Carrying bag Batteries Quick reference guide |
| Operating Temperature | -20 To 60°C |
| Product Type | Data Loggers |
| Storage Temperature | -20 To 60°C |
| True RMS | Yes |
