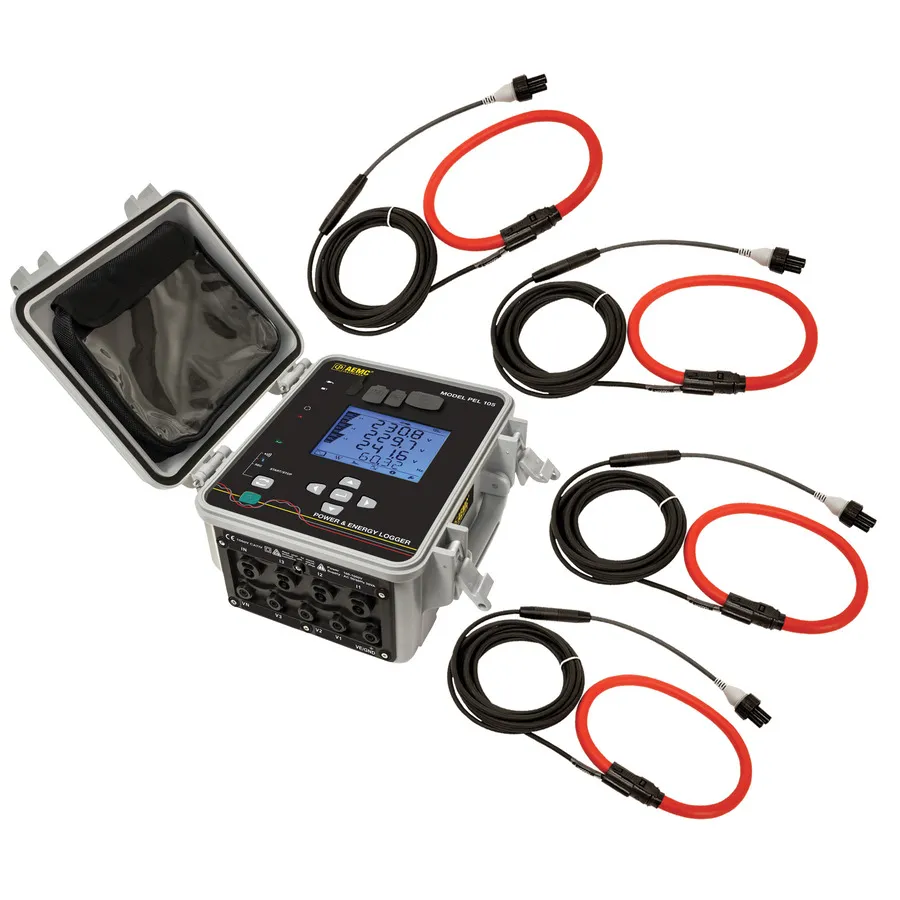

AEMC PEL 105 Power and Energy Logger
Request a quote
AEMC PEL 105 power and energy data logger with four current and voltage channels, IP67 rating, and wireless connectivity for comprehensive three-phase power monitoring.
Product details
| Model | PEL 105 W/4 196A-24-BK |
| Manufacturer | AEMC |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The AEMC PEL 105 is a three-phase power and energy data logger with four voltage and four current channels (including earth/ground monitoring). Designed for comprehensive power analysis, energy audits, and building system monitoring, the PEL 105 provides True RMS measurements, harmonic analysis, and wireless connectivity in an IP67-rated, weather-resistant enclosure.
Key Features
- Four voltage channels and four current channels (including earth/ground measurement)
- True RMS voltage and current measurements
- Power measurements: kVA, kW, and kvar
- Energy measurements: kWh, kVAh, and kvarh
- Power Factor (PF) and Displacement Power Factor (DPF) calculation
- Harmonic analysis and THD monitoring
- IP67 weatherproof rating for outdoor and harsh environments
- Wireless connectivity: USB, Ethernet, Wi-Fi, and Bluetooth
- Expandable SD card storage (up to 32GB)
- Includes four MA196-24-BK current sensors
- DataView® software for real-time monitoring and custom reporting
Applications
- Three-phase power quality analysis and monitoring
- Energy audits and consumption profiling
- Building and facility management
- Ground fault and earth leakage detection
- Electrical system diagnostics
Specifications
| Alternate Product Number | 2137.59 |
| Series | PEL 100 Series |
