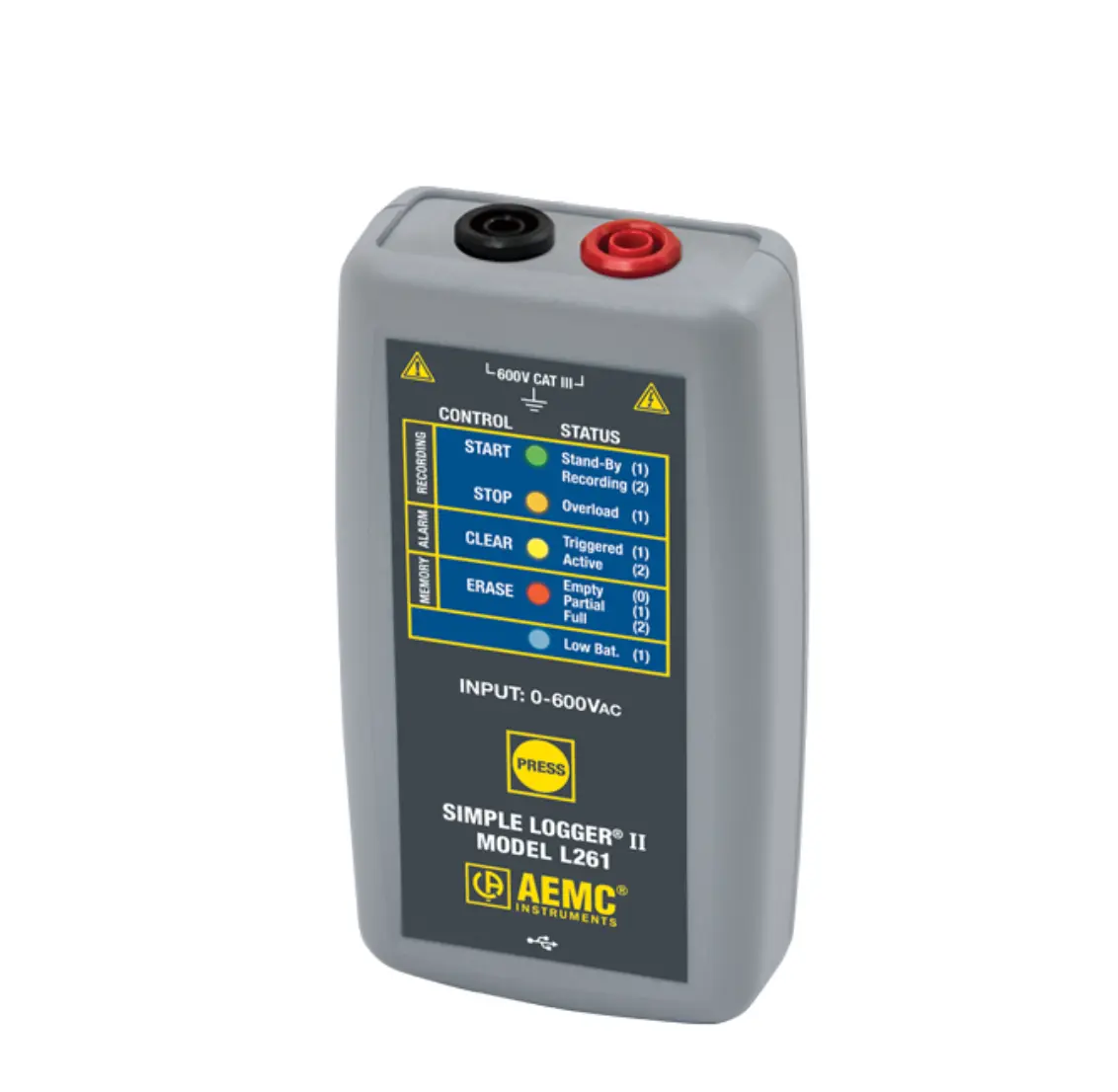

AEMC L261 Simple Logger
Request a quote
AEMC L261 one-channel data logger with 0.5% voltage accuracy, 5-600VAC range, 64-sample-per-cycle recording, IP40 rating.
Product details
| Model | L261 |
| Manufacturer | AEMC |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The AEMC L261 Simple Logger II is a portable one-channel data logger designed for recording voltage measurements in industrial and field testing applications. It provides flexible configuration through the included DataView software, allowing custom recording modes and sample rates for specific monitoring requirements.
Key Features
- One-channel voltage recording with 0.5% accuracy across 5-600VAC range
- 64 samples per line cycle for harmonic analysis and measurement
- Programmable recording modes: Start/Stop, FIFO, extended (XRM), and Alarm
- Recording duration from 15 minutes to 6 weeks (configurable)
- 512KB non-volatile memory storing up to 240,000 measurements
- USB 2.0 optically isolated communication with included DataView software
- Battery life 100 hours to 45+ days; operating temperature -10°C to 50°C; IP40 protection
Applications
- Power quality monitoring and electrical analysis
- Voltage recording for system troubleshooting
- Field measurements and baseline data collection
- Industrial electrical system testing and verification
Specifications
| Alternate Product Number | 2126.05 |
