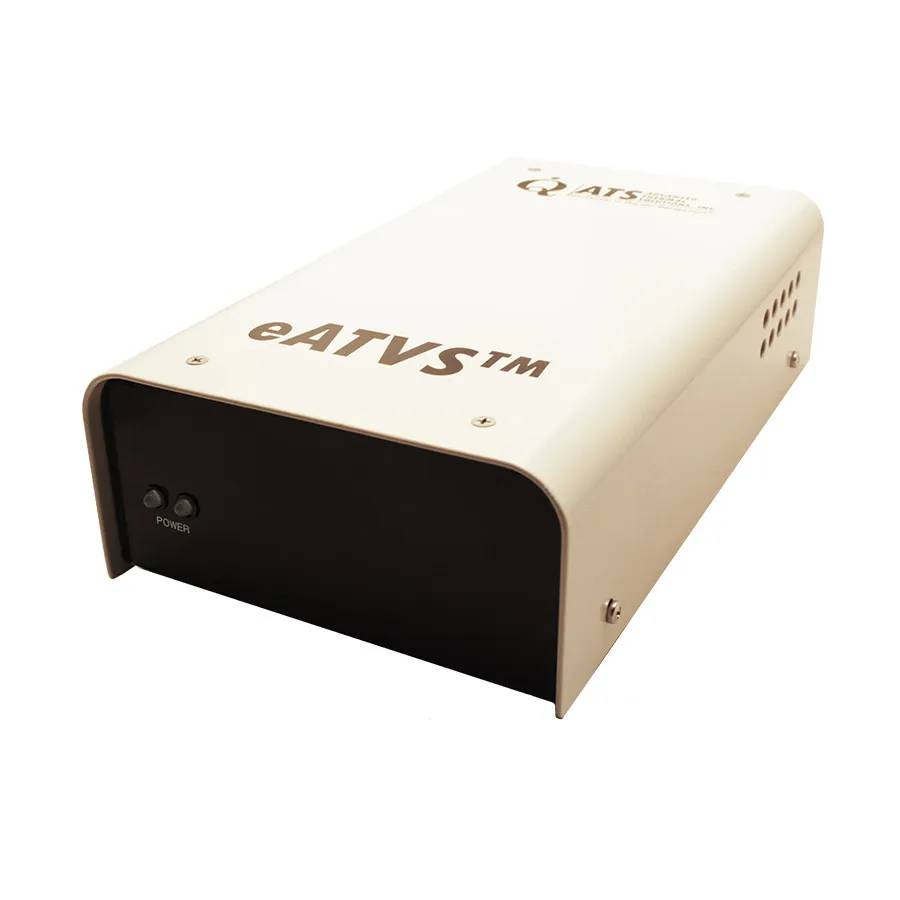

Advanced Thermal Solutions eATVS-8 Automatic Temperature and Velocity Scanner

Overview

The eATVS-8 is a portable, 8-channel automatic temperature and velocity scanner based on hot wire anemometer technology. This research-quality instrument performs accurate single- or multi-point measurements of air temperature, velocity, and surface temperature in complex environments such as PCBs and electronics enclosures. It can measure both fluid and solid temperatures when used as a temperature logger.

Designed for both rackmount and desktop configurations, the eATVS-8 employs patented, fast-response, omni-directional sensors that measure both temperature and velocity simultaneously. The unique single-sensor technology eliminates errors introduced by non-isothermal airflow. Each precisely calibrated sensor is flexible and robust with a low-profile configuration that allows minimally intrusive mounting throughout PCB topographies. The system operates via a connected PC using the included stageVIEW software for data acquisition and reporting.

Key Features

• 8-channel sensor capability for comprehensive multi-point measurement
• Temperature measurement range: -20°C to 120°C with ±1°C accuracy
• Velocity measurement: 0 to 50 m/s (0 to 10,000 ft/min) with ±2% uniformity
• Patented omni-directional sensors for simultaneous temperature and velocity measurement
• Fast response, low-profile design minimizes flow disturbance
• Compact dimensions: 23.5 × 13.4 × 6.4 cm (9.3 × 5.3 × 2.5 inches)
• USB connectivity for PC operation
• Dual power supply: 110V or 220V
• stageVIEW software for data acquisition and reporting

Applications

• Solid and liquid temperature measurement
• Velocity measurement in electronics and PCBs
• Heat sink characterization and testing
• PCB thermal testing and validation
• Electronics enclosure thermal analysis
• Thermal characterization and comparison studies
