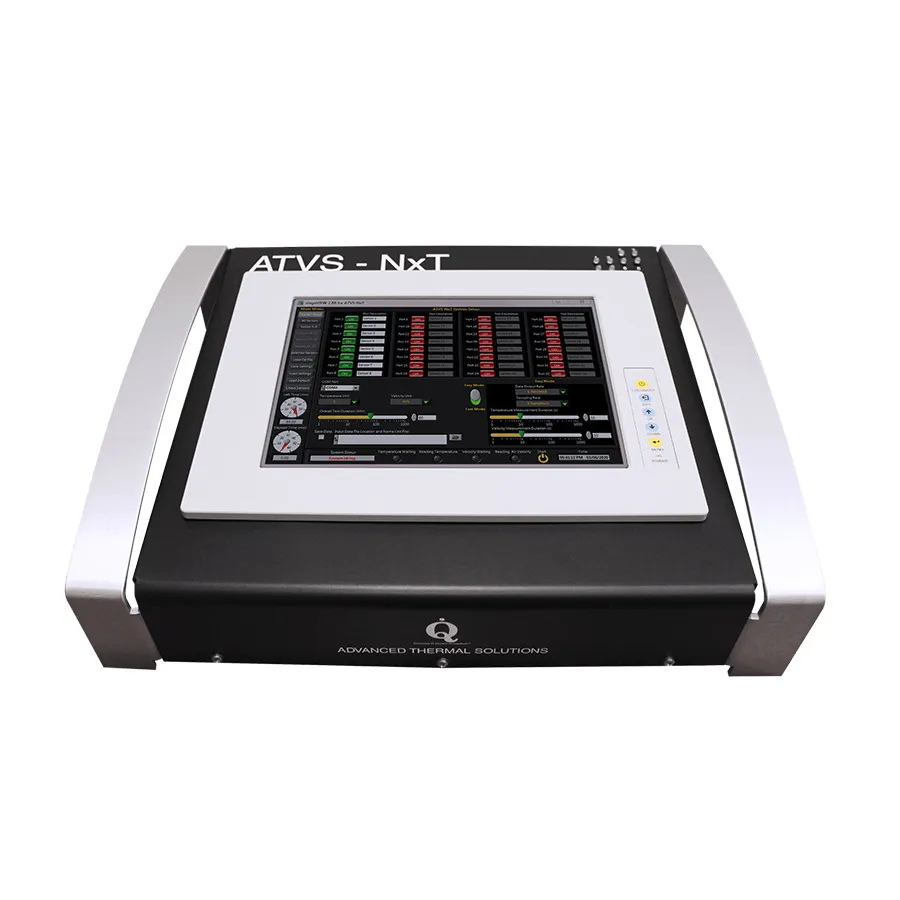

Advanced Thermal Solutions ATVS-NxT-8 Temperature and Velocity Scanner

Overview

The Advanced Thermal Solutions ATVS-NxT-8 is a portable 8-channel hot wire anemometer scanner designed for rapid and precise temperature and air velocity measurements in electronic packages and testing environments. It features an embedded PC with touch screen control, allowing operators to monitor readings directly on the device or remotely via Ethernet connection. Temperature and velocity sensors are sold separately.

Key Features

• 8 measurement channels for simultaneous temperature and velocity data
• Embedded PC with touch screen interface
• Temperature range: -20 to 120°C (±1°C accuracy)
• Air velocity range: 0 to 51 m/s (0 to 10,000 ft/min) with ±3% accuracy
• 100GB solid-state compact flash storage
• 4 USB ports and optional 2.5-inch SATA HDD expansion
• Ethernet connectivity for local network and remote Internet monitoring
• Patented single-sensor technology measures both temperature and velocity without flow disturbance
• stageVIEW software for data logging and analysis

Applications

• Electronic component thermal testing and validation
• HVAC and air flow measurement
• Industrial thermal profiling
• Research and development environmental testing
