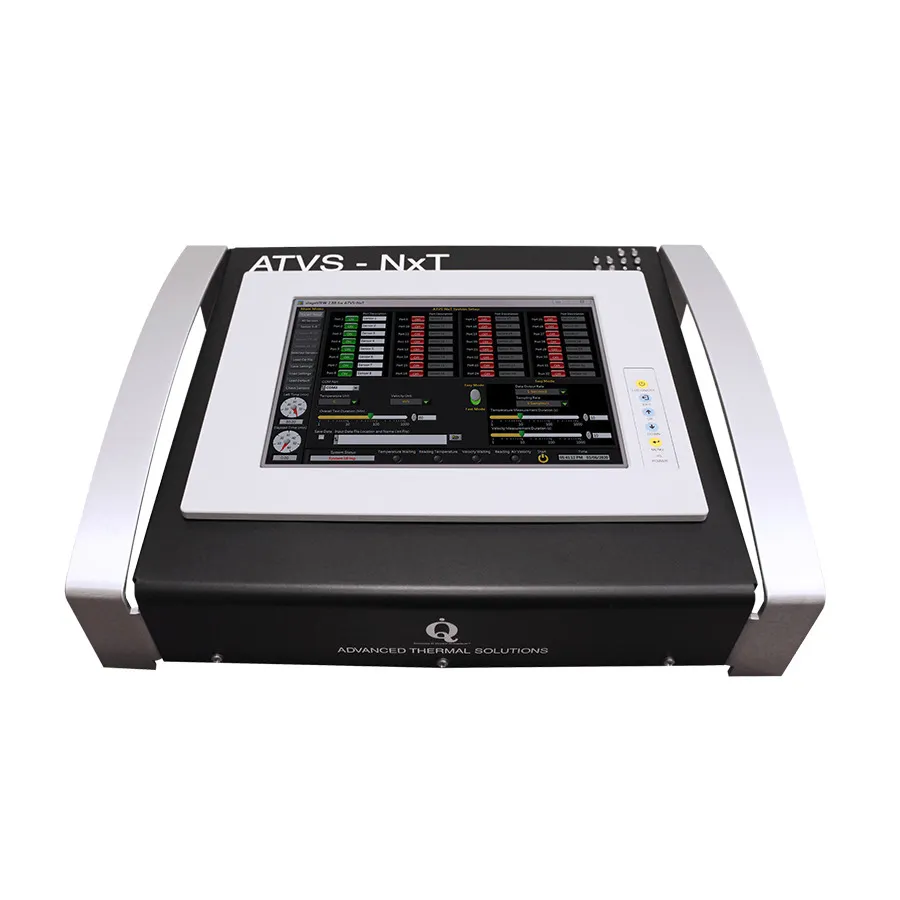

Advanced Thermal Solutions ATVS-NxT-24 Auto Temperature/Velocity Scanner

Overview

The Advanced Thermal Solutions ATVS-NxT-24 is a fully-portable automatic temperature and velocity scanner designed for rapid and highly precise temperature and air velocity measurements in electronic packages and thermal testing applications. It features an embedded PC with touch screen control, enabling on-site data collection and analysis with Ethernet connectivity for remote monitoring via LAN or the Internet.

Key Features

• 24 measurement channels with embedded PC and touch screen control
• Temperature Range: -20 to 120°C (±1°C accuracy)
• Air velocity Range: 0 to 51 m/s (0 to 10,000 ft/min) (±3% accuracy)
• stageVIEW software for data acquisition and analysis
• Dual power supply: 110V or 220V
• Ethernet connection for remote data transfer and monitoring
• 100GB solid state storage, 4 USB ports, optional 2.5 inch SATA HDD
• Compact dimensions: 47 x 43 x 19.7 cm (18.5 x 17 x 7.8 inches)
• Single patented sensor technology measures both temperature and velocity simultaneously

Applications

• Electronic package thermal testing and characterization
• Air flow measurement and mapping in thermal chambers
• HVAC system performance monitoring
• Research and development thermal analysis
