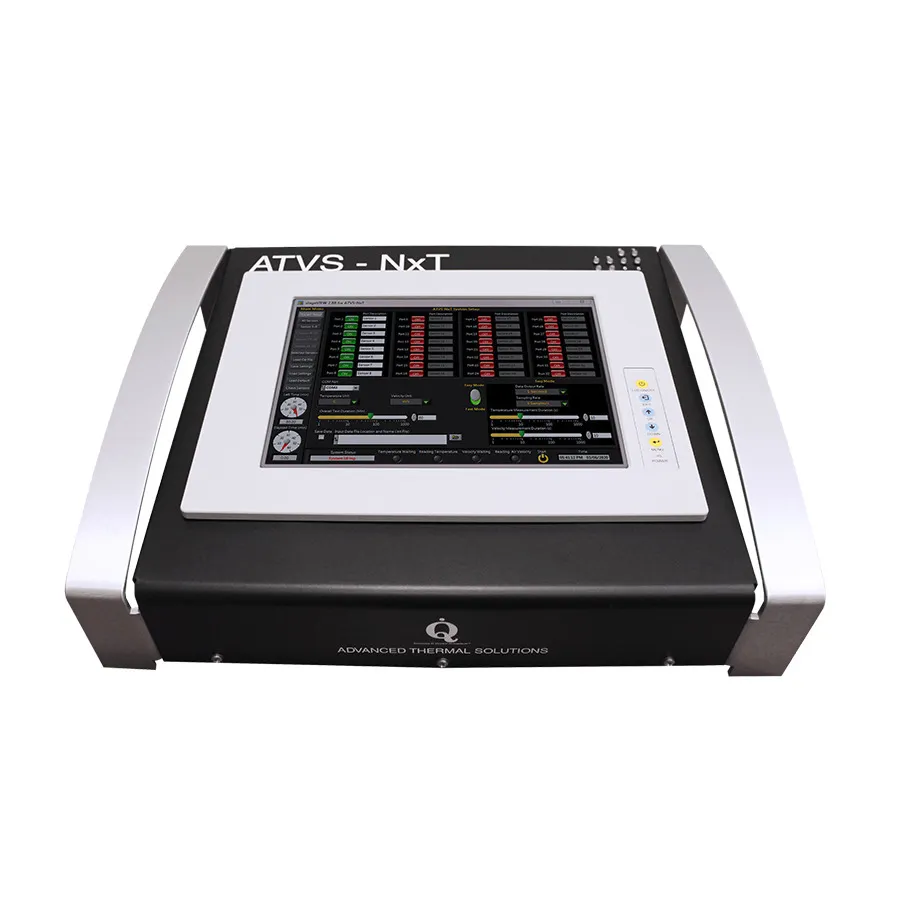

Advanced Thermal Solutions ATVS-NxT-12 Auto Temperature & Velocity Scanner

Overview

The Advanced Thermal Solutions ATVS-NxT-12 is a fully-portable hot wire anemometer featuring an embedded PC with integrated touch screen control for rapid and precise temperature and velocity measurement in electronic packages. The system combines patented single sensor technology with powerful on-board computing and data storage, enabling remote monitoring and analysis via local network or Internet connectivity.

Key Features

• 12 sensor channels for multi-point thermal measurement
• Embedded PC with integrated touch screen control
• Patented single sensor technology for simultaneous temperature and velocity measurement
• 100GB solid state storage with option for 2.5" SATA HDD expansion
• Four USB ports for flexible connectivity
• Temperature range: -20°C to 120°C (±1°C)
• Velocity range: 0 to 51 m/s (0 to 10,000 ft/min) with ±3% accuracy
• stageVIEW software for data acquisition and reporting
• Ethernet connection for network and Internet data transfer
• Remote monitoring via LAN or Internet
• Dual voltage power supply: 110V or 220V
• Compact dimensions: 47 × 43 × 19.7 cm

Applications

• Thermal characterization of electronic packages
• Heat sink design and performance evaluation
• PCB thermal analysis and testing
• Velocity field mapping and analysis
• Temperature and flow measurement in confined spaces
• Portable thermal diagnostics
