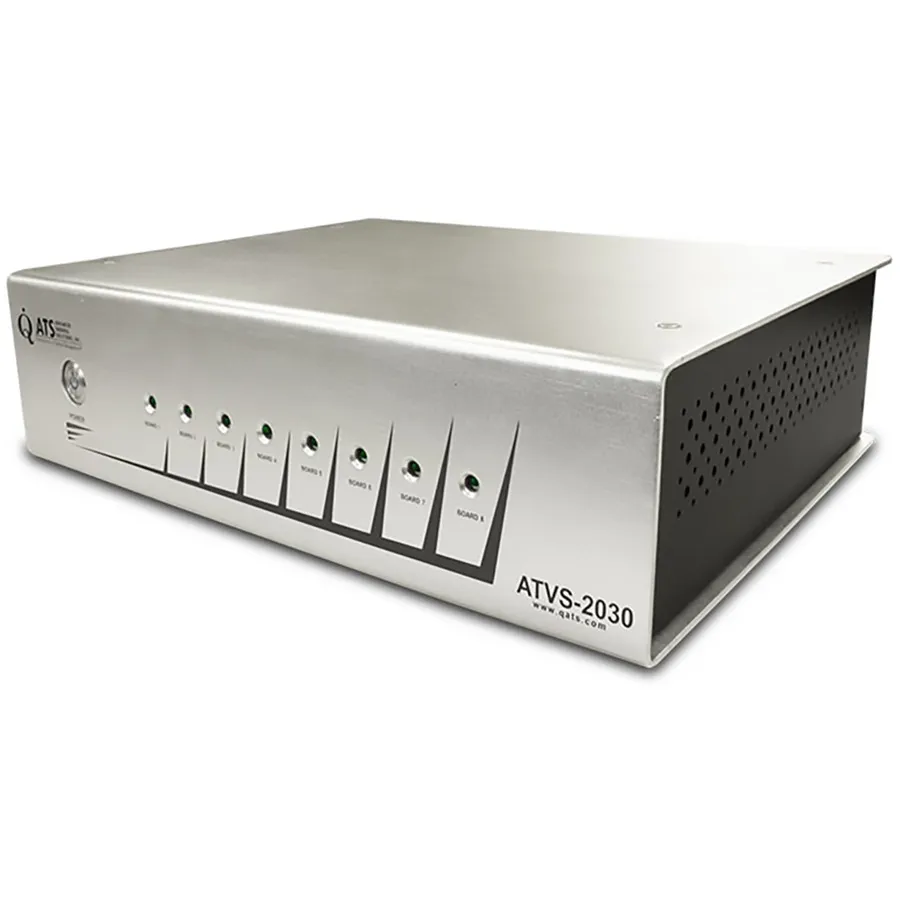

Advanced Thermal Solutions ATVS-2030-30 Auto Temperature & Velocity Scanner
Request a quote
Advanced Thermal Solutions ATVS-2030-30 is a 30-channel multi-channel hot wire anemometer system for simultaneous temperature and velocity measurement across thermal test domains.
Product details
| Model | ATVS-2030-30 |
| Manufacturer | Advanced Thermal Solutions |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The Advanced Thermal Solutions ATVS-2030™-30 is a patented multi-channel hot wire anemometer system with 30 sensor channels designed for single or multi-point measurement of humidity, surface temperature, air temperature, and velocity. These portable scanners excel at rapid thermal and flow mapping for comprehensive characterization of test domains across laboratory and field environments.
Key Features
- 30 sensor channels plus one dedicated humidity sensor channel
- Patented single sensor technology measuring both temperature and velocity at each location
- Flexible, low-profile candlestick sensors designed to minimize flow disturbance
- Temperature range: -30°C to 150°C (±1°C)
- Velocity range: 0 to 50 m/s (0 to 10,000 ft/min) with ±3% accuracy
- Humidity measurement: ±2% at 55% RH
- USB 2.0, Wi-Fi, and Ethernet connectivity
- stageVIEW™ software for data acquisition and reporting
- Dual voltage power supply: 110V or 220V
- Compact dimensions: 28.5 × 37.4 × 10.9 cm, weighing 3.8 kg
Applications
- Surface and air temperature measurement
- Velocity field mapping and characterization
- Heat sink design and performance evaluation
- PCB thermal testing and analysis
- Heat sink comparison studies
- Wind tunnel testing
- Thermal characterization of electronic packages
Specifications
| Alternate Product Number | 1000000184 |
| Series | ATVS-2030 Series |
| Interface | USB port 2.0, Wi-Fi, Ethernet |
| Number of Channels | 30 Channel |
| Overall Dimensions | 11.2 x 14.7 x 4.3" |
| RoHS Compliance | Yes |
| Software | stageVIEW |
| Temperature Range | -30 to 150°C |
