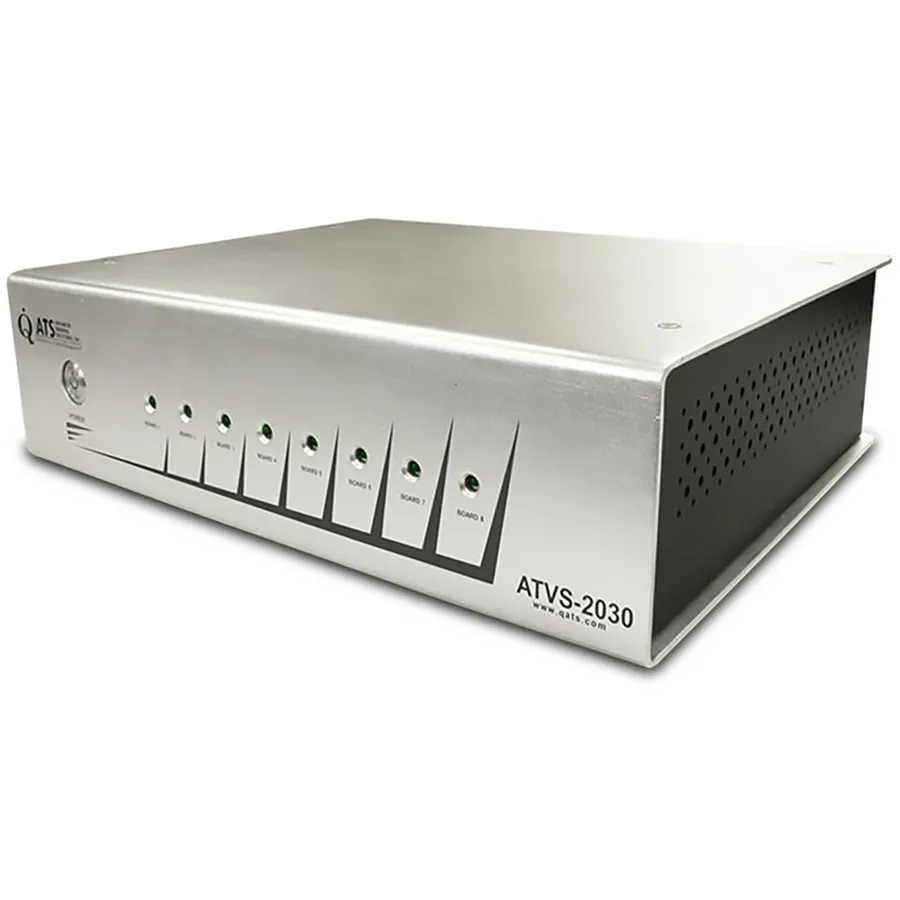

Advanced Thermal Solutions ATVS-2030-18 Automatic Temperature and Velocity Scanner

Overview

The Advanced Thermal Solutions ATVS-2030-18 is a patented, multi-channel hot wire anemometer system designed for simultaneous measurement of humidity, surface temperature, air temperature, and velocity across 18 measurement points. The system features flexible, robust candlestick sensors that minimize flow disturbance. A single sensor measures both temperature and velocity at each point, eliminating errors from non-isothermal flow conditions. Great care is taken in the calibration process of each sensor to ensure accuracy and reliability in thermal mapping applications.

Key Features

• 18 simultaneous temperature and velocity measurement channels
• Temperature range: -30°C to 150°C (±1°C accuracy)
• Velocity range: 0 to 50 m/s (0 to 10,000 ft/min) with ±3% accuracy
• Humidity measurement capability with ±2% accuracy at 55% RH
• Patented single-sensor technology for combined temperature and velocity
• Flexible, low-profile candlestick sensors minimize flow disturbance
• stageVIEW™ software for intuitive data acquisition and reporting
• Multiple connectivity: USB 2.0, Wi-Fi, and Ethernet
• Compact and portable design (28.5 cm × 37.4 cm × 10.9 cm)
• Power supply: 110V or 220V AC

Applications

• Surface and air temperature measurement
• Velocity and flow field mapping
• Heat sink characterization and testing
• PCB thermal testing and validation
• Heat sink comparison and optimization
• Wind tunnel testing and analysis
• Thermal characterization studies
