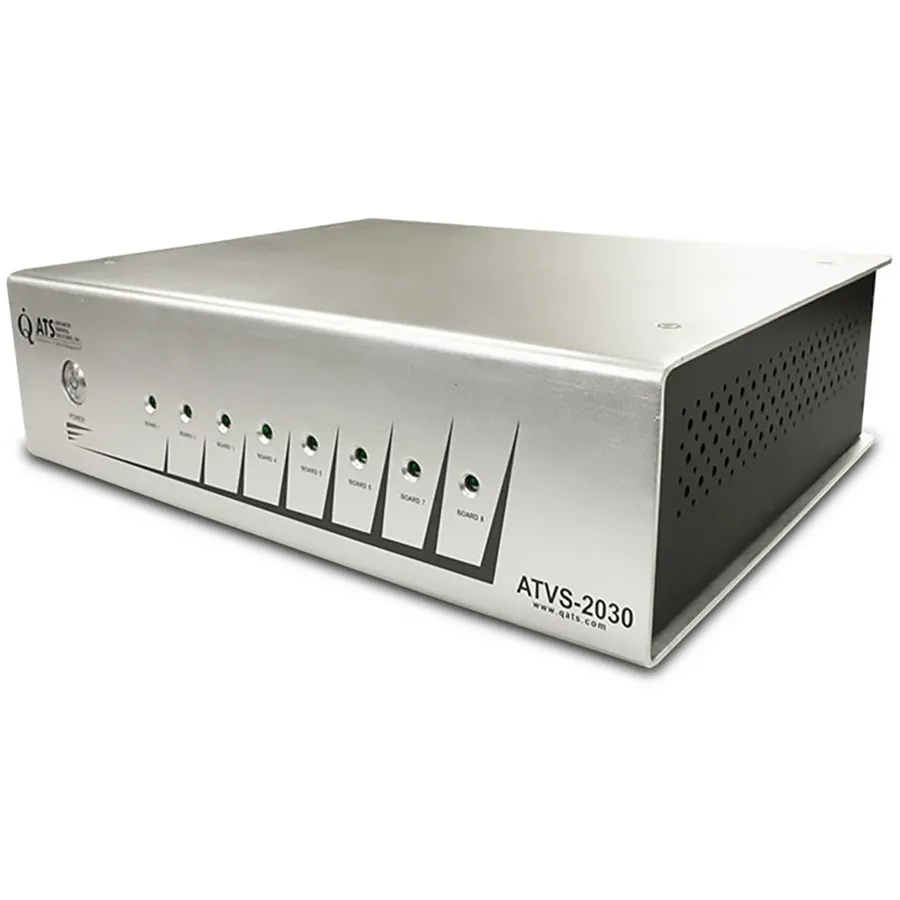

Advanced Thermal Solutions ATVS-2030-10 Temperature and Velocity Scanner
Request a quote
Advanced Thermal Solutions ATVS-2030-10 — 10-channel scanner measuring temperature, humidity, and velocity from -30 to 150°C with Wi-Fi and Ethernet.
Product details
| Model | ATVS-2030-10 |
| Manufacturer | Advanced Thermal Solutions |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The ATVS-2030-10 is a patented, multi-channel hot wire anemometer system for comprehensive measurement of humidity, surface temperature, air temperature, and velocity. With 10 sensor channels and a dedicated humidity sensor port, this system provides accurate thermal and flow characterization for demanding applications. The candlestick sensors are designed to be flexible, robust, and low profile to minimize flow disturbance.
Key Features
- 10 temperature and velocity sensor ports
- Dedicated humidity sensor channel
- Extended temperature range: -30 to 150°C (-22 to 302°F) with ±1°C accuracy
- Flow range: 0 to 50 m/s (0 to 10,000 ft/min) with ±3% accuracy
- Humidity measurement: ±2% at 55% RH
- USB 2.0, Wi-Fi, and Ethernet connectivity for flexible integration
- stageVIEW software for intuitive data acquisition and reporting
- 110V or 220V power supply (international compatible)
- Portable design with 3.8 kg weight
Applications
- Heat sink characterization and thermal testing
- PCB thermal analysis and validation
- Wind tunnel velocity and temperature profiling
- Thermal field mapping and characterization
- Humidity and temperature monitoring in critical environments
- HVAC system analysis and optimization
Specifications
| Alternate Product Number | 1000000184 |
| Series | ATVS-2030 Series |
| Interface | USB port 2.0, Wi-Fi, Ethernet |
| Number of Channels | 10 Channel |
| Overall Dimensions | 11.2 x 14.7 x 4.3" |
| RoHS Compliance | Yes |
| Software | stageVIEW |
| Temperature Range | -30 to 150°C |
