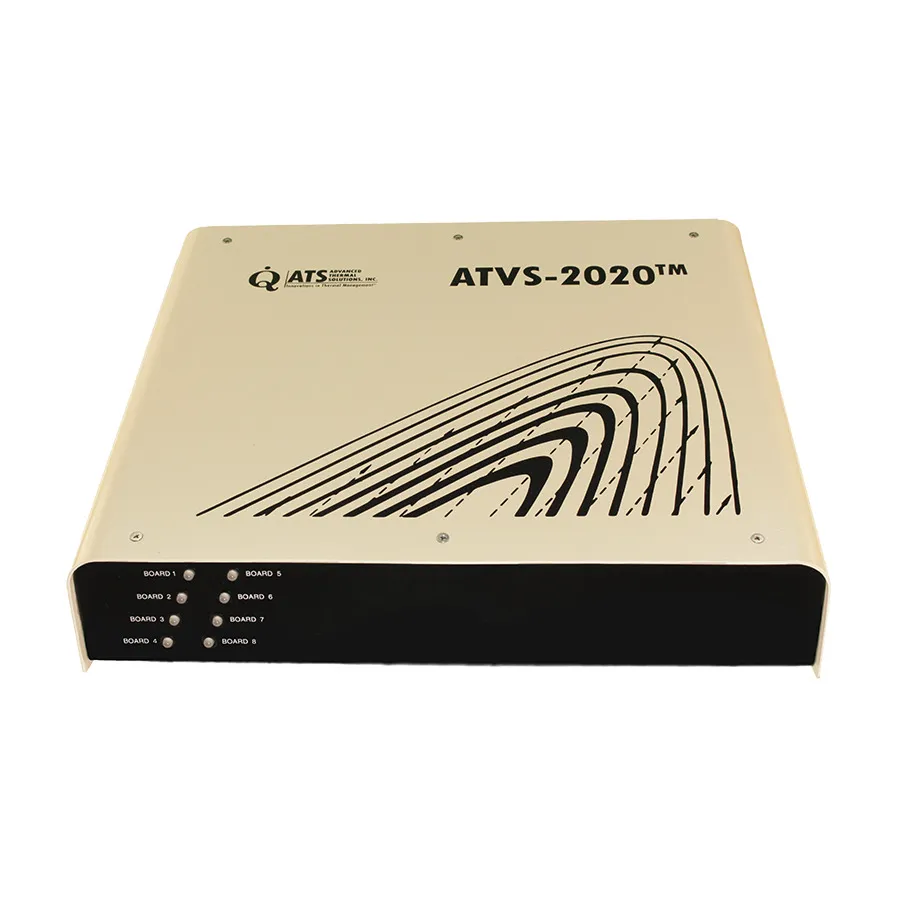

Advanced Thermal Solutions ATVS-2020-8 Temperature and Velocity Scanner
Request a quote
Advanced Thermal Solutions ATVS-2020-8 — 8-channel hot wire anemometer for simultaneous temperature (±1°C) and velocity (0–50 m/s) measurement.
Product details
| Model | ATVS-2020-8 |
| Manufacturer | Advanced Thermal Solutions |
| Category | Data Loggers |
| Availability | Made to order |
Description
Overview
The ATVS-2020-8 is a patented, multi-channel hot wire anemometer system designed for single or multi-point measurement of air temperature and velocity. Each sensor simultaneously measures both parameters, eliminating errors that can result from non-isothermal flow conditions. This compact 8-channel system is ideal for thermal characterization and field mapping applications.
Key Features
- 8 sensor ports for flexible measurement configurations
- Flow range: 0 to 50 m/s (0 to 10,000 ft/min) with ±2% uniformity
- Temperature range: -20 to 120°C (-4 to 248°F) with ±1°C accuracy
- Flexible, robust sensors minimize flow disturbance
- stageVIEW software for data acquisition and reporting
- USB port connectivity
- 110V or 220V power supply (international compatible)
Applications
- Thermal field mapping and characterization
- Heat sink testing and evaluation
- Wind tunnel applications
- HVAC system analysis
- Industrial thermal testing
Specifications
| Interface | USB |
| Number of Channels | 8 |
| Power | 110 or 220V |
| Temperature Range | -20 to 120 C (-4 to 248 F) |
