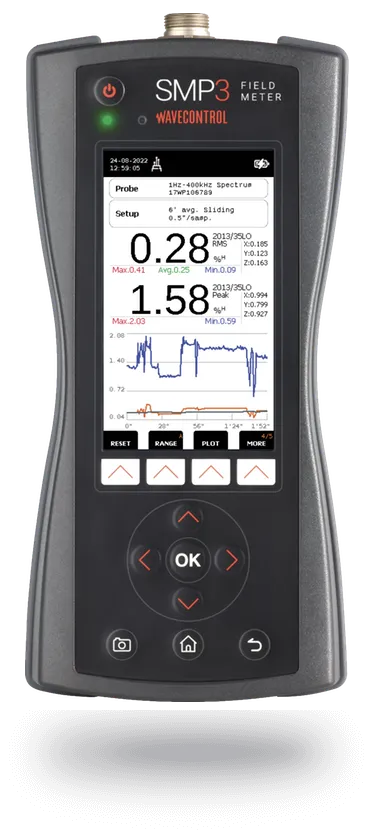

Wavecontrol SMP3 Electromagnetic Field Meter
Request a quote
Wavecontrol SMP3 is a 3-in-1 field meter with broadband measurements to 90 GHz, real-time spectrum analysis, and static field assessment with digital output and GPS synchronization.
Product details
| Model | SMP3 (WSL0001) |
| Manufacturer | Wavecontrol |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Wavecontrol SMP3 is an advanced 3-in-1 electromagnetic field measurement instrument that extends measurement capabilities with broadband coverage to 90 GHz and spectrum analysis up to 10 MHz. It delivers real-time FFT-based spectrum analysis, weighted peak method (WPM) assessment, and static field measurements with digital output capabilities for integration into automated measurement systems.
Key Features
- 3-in-1 measurement modes: broadband (DC–90 GHz), spectrum analysis (DC–10 MHz), and static field measurements
- Real-time FFT-based spectrum analysis with digital signal processing
- Weighted Peak Method (WPM) for real-time automatic limit comparison
- Auto-gain function for peak detection in challenging environments
- RMS and peak value display with maximum, minimum, and average statistics
- Isotropic and component-wise field measurements (X, Y, Z axes)
- Configurable measurement duration from 1 second to 100 hours
- Scheduled measurements with GPS satellite synchronization
- Digital output for real-time external measurement integration
- USB-C and fiber optic connectivity
- PC software with automated web portal reporting
Applications
- High-frequency EMF monitoring up to 90 GHz
- Workplace exposure assessment and standards compliance
- Automated data logging and remote monitoring
- Research facilities and RF measurement labs
- Integration with external data acquisition systems
Specifications
| Broadband Frequency Range | DC to 90 GHz |
| Spectrum Analysis Range | DC to 10 MHz |
| Measurement Modes | Broadband, selective spectrum, and static field |
| Real-time Processing | FFT-based digital processing with WPM |
| Measurement Time | 1 second to 100 hours (configurable) |
| Data Connectivity | USB-C, fiber optics, digital output |
| Battery | Internal rechargeable Li-ion (>24 hours autonomy) |
| Operating Temperature | -10°C to +50°C |
| Humidity Range | 5% to 95% non-condensing |
