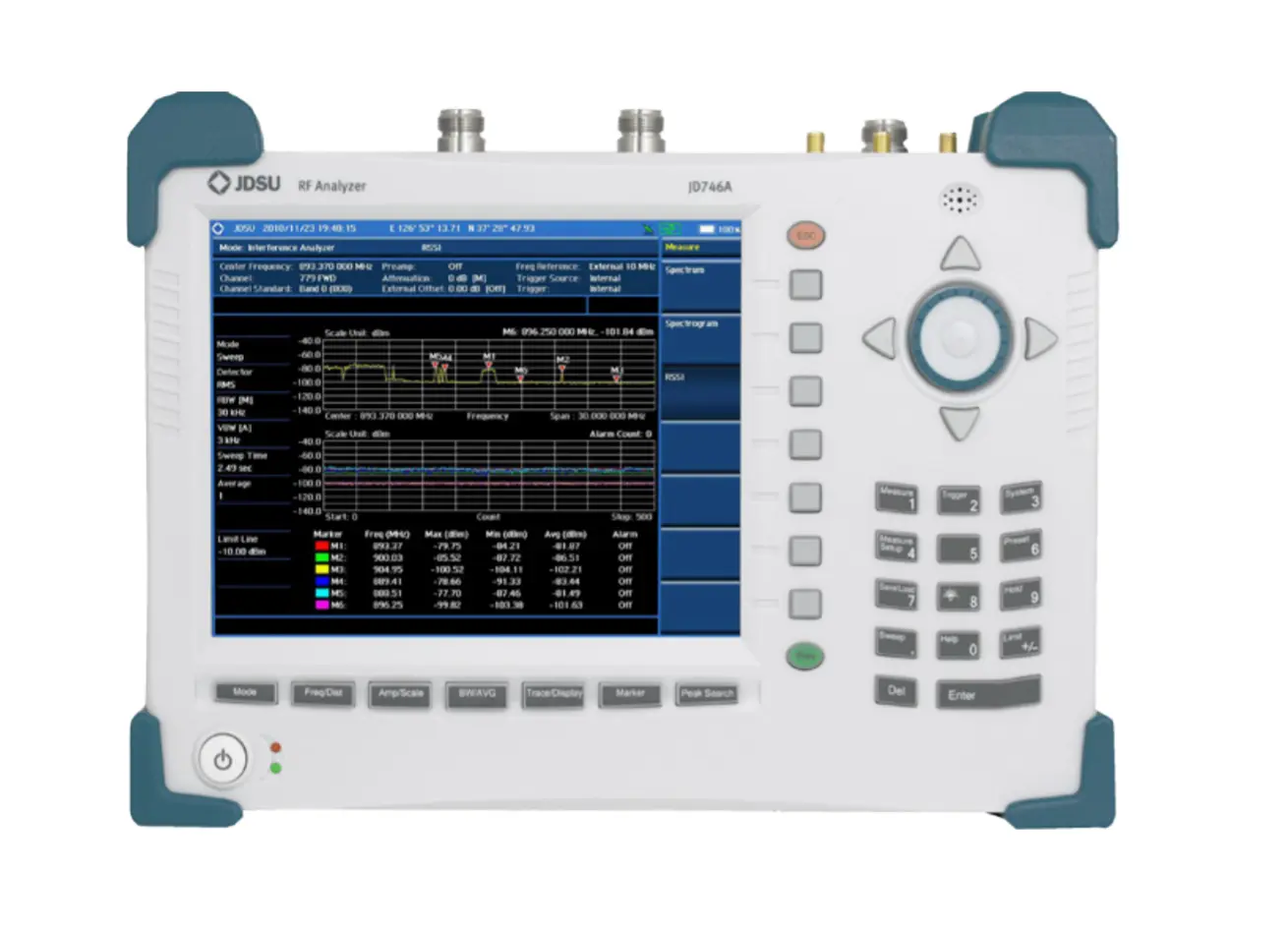

Viavi JD746A RF Analyzer
Request a quote
Viavi JD746A RF Analyzer combines spectrum analysis to 4 GHz with cable and antenna testing, offering one-button BTS measurements and optional interference analysis with preamplifier.
Product details
| Model | JD746A |
| Manufacturer | Viavi |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Viavi JD746A is an RF analyzer designed for cell site installation and maintenance. It combines spectrum analysis, cable and antenna testing, and power measurements in a single portable instrument, covering all measurements required for field testing, acceptance, and troubleshooting of cellular base station antenna systems.
Key Features
- Spectrum Analyzer: 100 kHz to 4 GHz
- Cable and Antenna Analyzer: 5 MHz to 4 GHz
- Power Meter: 10 MHz to 4 GHz
- One-button standards-based measurements for wireless signals
- Optional interference analysis with spectrogram display
- Built-in preamplifier for low-level signal detection down to –155 dBm
- Signal strength meter and signal ID capability
- Optional power sensors for accurate RF power measurement
- Flexible platform supporting additional functions
Optional Functions
- Interference Analysis
- Channel Scanner
- GPS receiver
- Two-port transmission measurements
- Built-in Bias Tee
- CW signal generator
Applications
- Cell site installation and commissioning
- Base station antenna system verification
- Interference identification and location
- Physical layer testing and BTS acceptance
Specifications
| Spectrum Analyzer Frequency Range | 100 kHz to 4 GHz |
| Cable and Antenna Analyzer Frequency Range | 5 MHz to 4 GHz |
| Power Meter Frequency Range | 10 MHz to 4 GHz |
| Minimum Signal Detection | –155 dBm (with preamplifier) |
