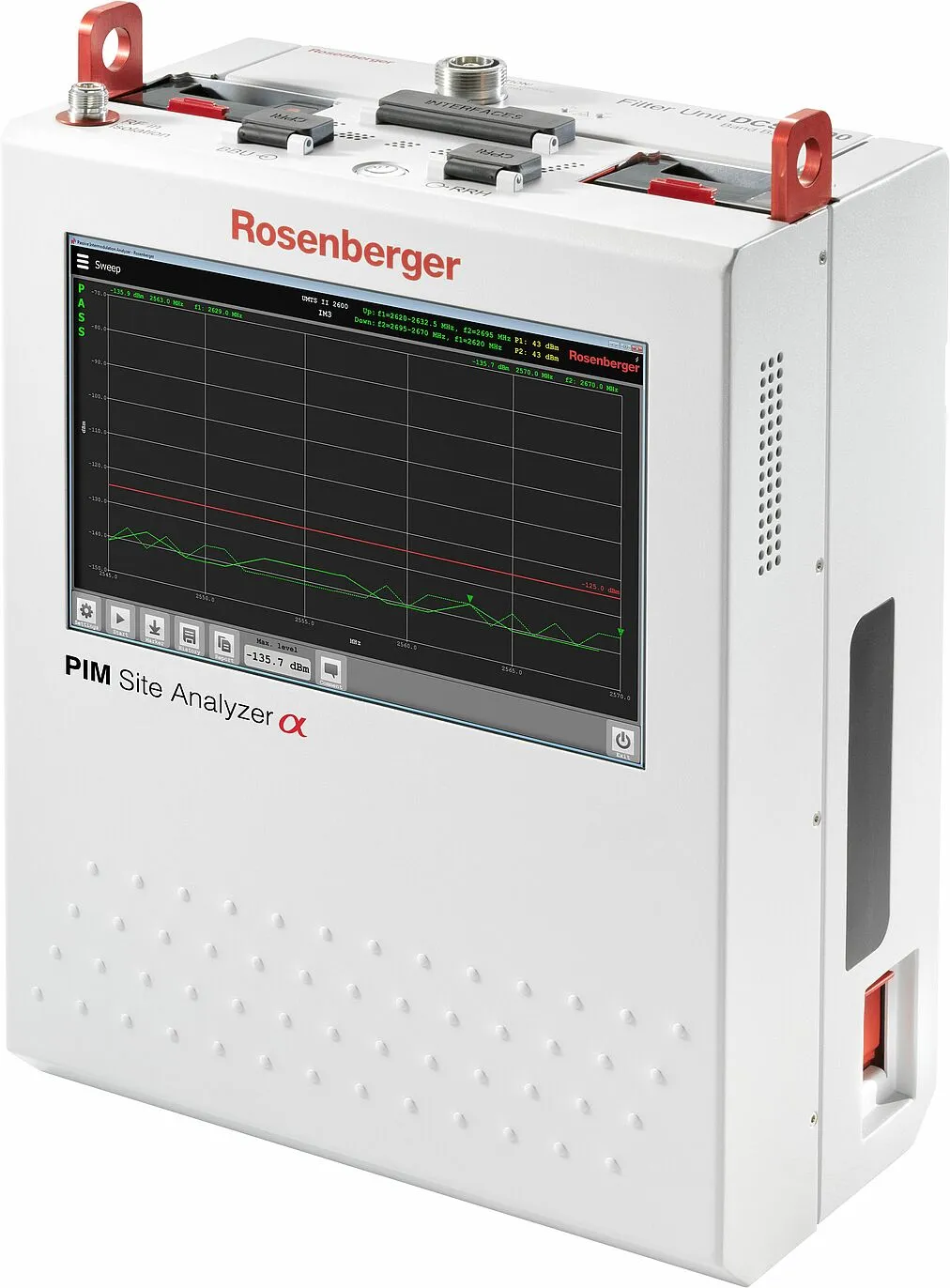

Rosenberger ALPHA PIM Site Analyzer

Overview

The Rosenberger ALPHA is a portable and multifunctional broadband PIM Site Analyzer designed for precise and efficient on-site PIM testing. The single master unit features field-interchangeable, band-specific filter units with a consistent form factor, allowing users to swap filters without requiring recalibration. This future-proof plug-and-play design covers frequencies from 700 to 2700 MHz.

Key Features

• Frequency range 700–2700 MHz with field-interchangeable, band-specific filter units
• Optional broadband VSWR/RL module with Distance-to-Fault (DTF) measurement and error correction
• Outstanding PIM performance: <-125 dBm (<-130 dBm typical)
• PIM Distance-to-Fault accuracy <0.3 m with range 0–150 m
• Built-in WiFi for remote control via optional Android tablet
• 12-inch touchscreen with intuitive software operation
• Operation via batteries or external power supply
• VSWR/return loss measurements and antenna isolation testing
• Integrated spectrum analyzer
• Exchangeable test port adaptors (7-16 and 4.3-10)
• No on-site calibration required

Applications

• Mobile base station antenna testing and commissioning
• PIM compliance testing per IEC 62037-1
• Antenna isolation and RF integration verification
• Site acceptance testing for cellular networks
