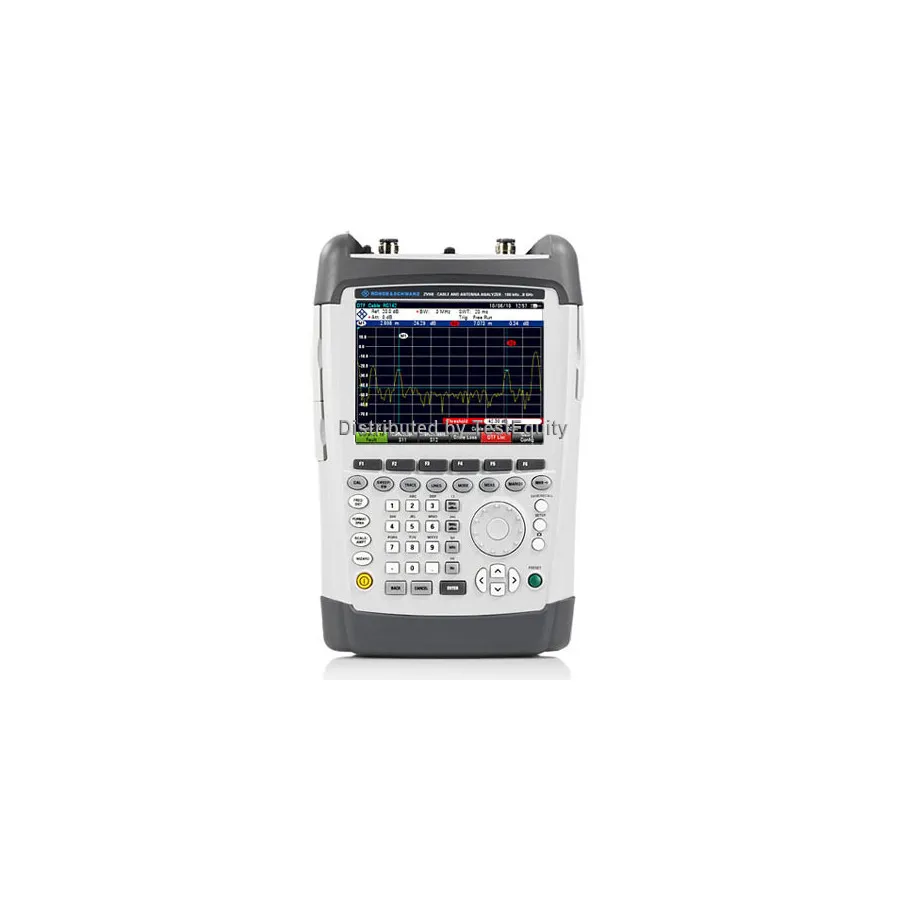

Rohde & Schwarz ZVH8 Cable and Antenna Analyzer
Request a quote
Rohde & Schwarz ZVH8 handheld cable and antenna analyzer with frequency range 100 kHz to 8 GHz, 100 dB dynamic range, and rugged field-ready design.
Product details
| Model | ZVH8 |
| Manufacturer | Rohde & Schwarz |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZVH8 is a rugged, handheld cable and antenna analyzer designed for field installation and maintenance of antenna systems. With frequency range from 100 kHz to 8 GHz, 100 dB dynamic range, splash-proof housing, and low weight of 3 kg with battery, it provides efficient measurements and easy operation for outdoor applications.
Key Features
- Frequency range from 100 kHz to 8 GHz
- 100 dB (typical) dynamic range for filter and antenna isolation measurements
- Built-in DC voltage supply (bias) for active components such as amplifiers
- Distance-to-fault measurements and transmission analysis
- Two-port vector network analysis capability
- Spectrum analysis and spectrogram measurements
- User-configurable test sequences with automated wizard
- Rugged, splash-proof housing suitable for field work
- Extended battery life: up to 4.5 hours per charge
- Remote control capability via LAN or USB
Applications
- Installation and commissioning of antenna systems
- Maintenance and troubleshooting of antenna systems
- Cable loss and reflection measurements
- Vector network analysis in field conditions
- Spectrum analysis measurements
Included Accessories
- Li-ion battery pack
- USB cable
- LAN cable
- AC power supply
- CD-ROM with R&S ZVHView software and documentation
- Quick start guide
- SD card reader for PC
Specifications
| Frequency | 8 GHz |
| Series | ZVH Series |
| Alternate Product Number | 1309.6800.28 |
| Battery Life | 4.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N |
| Dimensions | 7.6 x 11.8 x 2.7 in. |
| Display | 6.5" Color LCD |
| Dynamic Range | 100 dB |
| Frequency Range | 100 kHz to 8 GHz |
| Function | CAT, VNA, SA |
| Includes | Lithium-ion battery pack (4.2 Ah), USB cable, LAN cable, Plug-in power supply, CD-ROM with InstrumentView software and documentation, Quick start guide |
| Number of Ports | 2 |
| Type | Cable & Antenna Analyzer |
