Rohde & Schwarz ZVH4 Cable and Antenna Analyzer
Request a quote

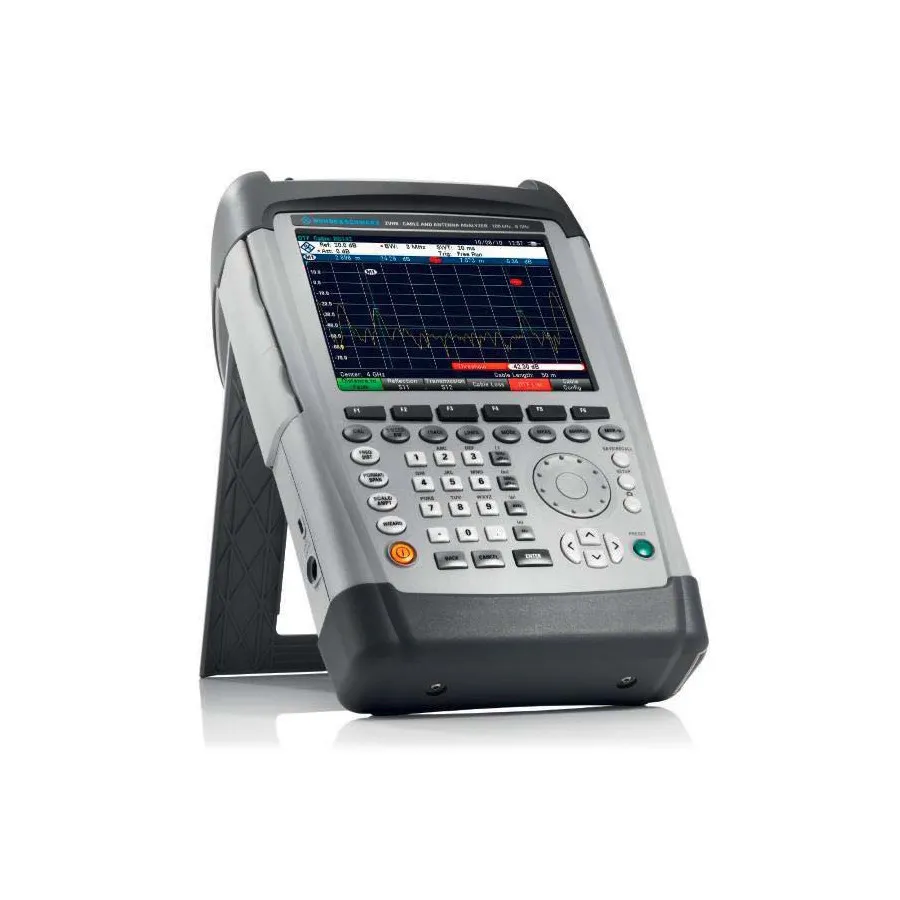

Rohde & Schwarz ZVH4 portable cable and antenna analyzer with 100 kHz to 3.6 GHz range, 100 dB dynamic range, DC bias supply, and rugged field-ready housing.
Product details
| Model | ZVH4 |
| Manufacturer | Rohde & Schwarz |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZVH4 is a rugged, handheld cable and antenna analyzer designed for field installation and maintenance of antenna systems. Combining low weight (3 kg with battery) and intuitive operation, it provides comprehensive measurement capabilities for RF engineers and technicians working outdoors.
Key Features
- Frequency range from 100 kHz to 3.6 GHz
- 100 dB (typ.) dynamic range for filter and antenna isolation measurements
- Built-in DC voltage supply (bias) for active components such as amplifiers
- User-configurable test sequences (wizard) for simplified operation
- Saving of measurement results on SD memory card or USB memory stick
- Li-ion battery for up to 4.5 hours of operation
- Rugged, splash-proof housing for rough field work
- Remote control via LAN or USB with R&S ZVHView software
Applications
Installation of Antenna Systems
- Distance-to-fault measurements
- One-port cable loss measurements
- Reflection and transmission measurements
- Position finding using GPS receiver
Maintenance of Antenna Systems
- Two-port vector network analysis
- Vector voltmeter measurements
- Terminating and directional power measurements
- Spectrum analysis and spectrogram measurements
Included Accessories
- Li-ion battery pack
- USB cable
- LAN cable
- AC power supply
- CD-ROM with R&S ZVHView software and documentation
- Quick start guide
- SD card reader for PC
Specifications
| Frequency | 3.6 GHz |
| Series | ZVH Series |
| Alternate Product Number | 1309.6800.24 |
| Battery Life | 4.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N |
| Dimensions | 7.6 x 11.8 x 2.7 in. |
| Display | 6.5" Color LCD |
| Dynamic Range | 100 dB |
| Frequency Range | 100 kHz to 3.6 GHz |
| Function | CAT, VNA, SA |
| Includes | Lithium-ion battery pack (4.2 Ah), USB cable, LAN cable, Plug-in power supply, CD-ROM with InstrumentView software and documentation, Quick start guide |
| Number of Ports | 2 |
| Type | Cable & Antenna Analyzer |
