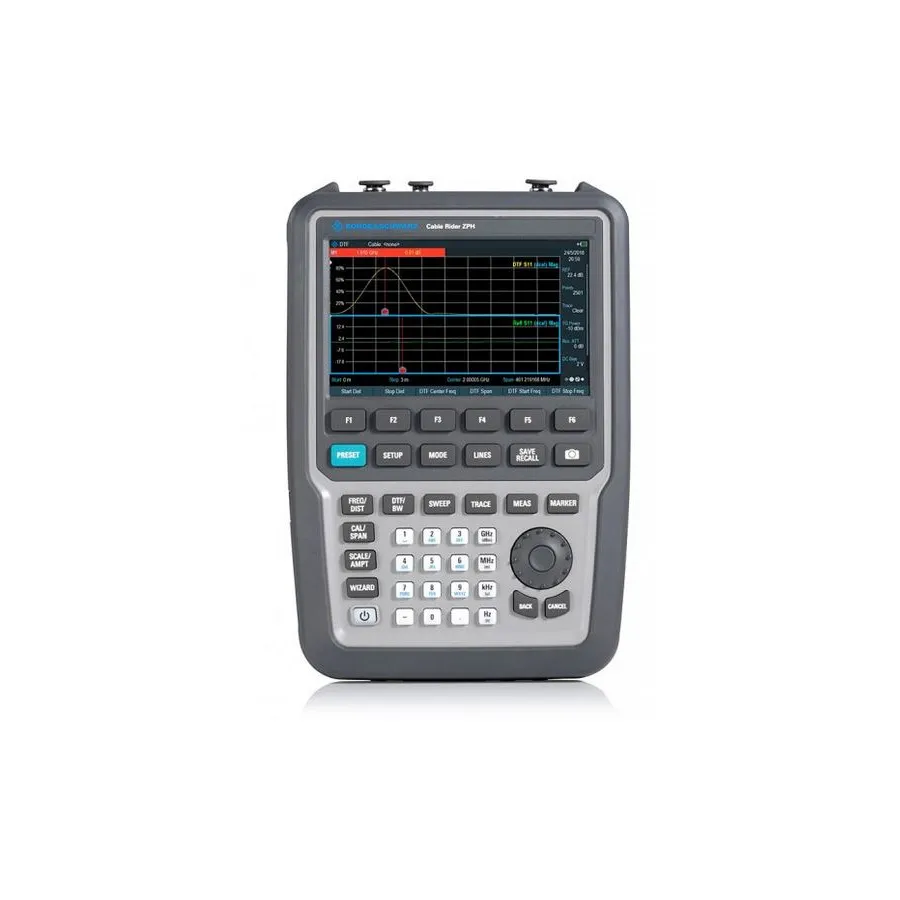

Rohde & Schwarz ZPH-COM2 Cable and Antenna Analyzer
Request a quote
Rohde & Schwarz ZPH-COM2 is a two-port cable and antenna analyzer with 2 MHz to 4 GHz frequency range, spectrum analysis, touchscreen display, and integrated tracking generator.
Product details
| Model | ZPH-COM2 |
| Manufacturer | Rohde & Schwarz |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZPH-COM2 is a two-port cable and antenna analyzer designed for installing and servicing radio transmission links in field environments. With advanced spectrum analysis and tracking generator capabilities, it performs comprehensive cable, antenna, and transmission line measurements. The touchscreen and illuminated keypad provide intuitive control in the field, while fast measurement and analysis speed enable efficient troubleshooting and verification.
Key Features
- Two-port configuration with S21 transmission measurements
- Cable and antenna analyzer frequency range from 2 MHz to 4 GHz
- Spectrum analyzer with 5 kHz to 4 GHz coverage
- Independent tracking source for S-parameter measurements
- Integrated bias tee for active device testing
- Spectrum analyzer preamplifier for enhanced sensitivity
- Interference analysis and modulation analysis (AM/FM/ASK/FSK demodulation)
- Large color touchscreen with capacitive input
- Measurement wizard for fast setup and error reduction
- GPS support for location-based field measurements
- Power sensor support and advanced measurement capabilities
- Battery provides full work day runtime on single charge
- Illuminated keypad for low-light operation
Applications
- Installing and servicing cellular, broadcast, and microwave transmission links
- Cable and connector verification with two-port characterization
- Transmission line impedance and return loss measurements
- Spectrum monitoring, interference detection, and signal analysis
- Modulation quality analysis and signal demodulation
- Active component testing with integrated bias tee
Specifications
| Frequency | 4 GHz |
| Series | ZPH Series |
| Backlight | Yes |
| Battery Life | 9 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 8 x 11.6 x 3 in. |
| Display | WVGA |
| Dynamic Range | 150 dB |
| Frequency Range | 2 MHz to 4 GHz |
| Includes | Rechargeable battery, USB cable, AC power adapters, Side strap, Optional GPS support, 3 - 4GHz frequency upgrade |
| Number of Ports | 1 |
| Operating Temperature Range | –10 to 55°C |
| Resolution | 1 Hz |
| Type | Cable & Antenna Analyzer |
