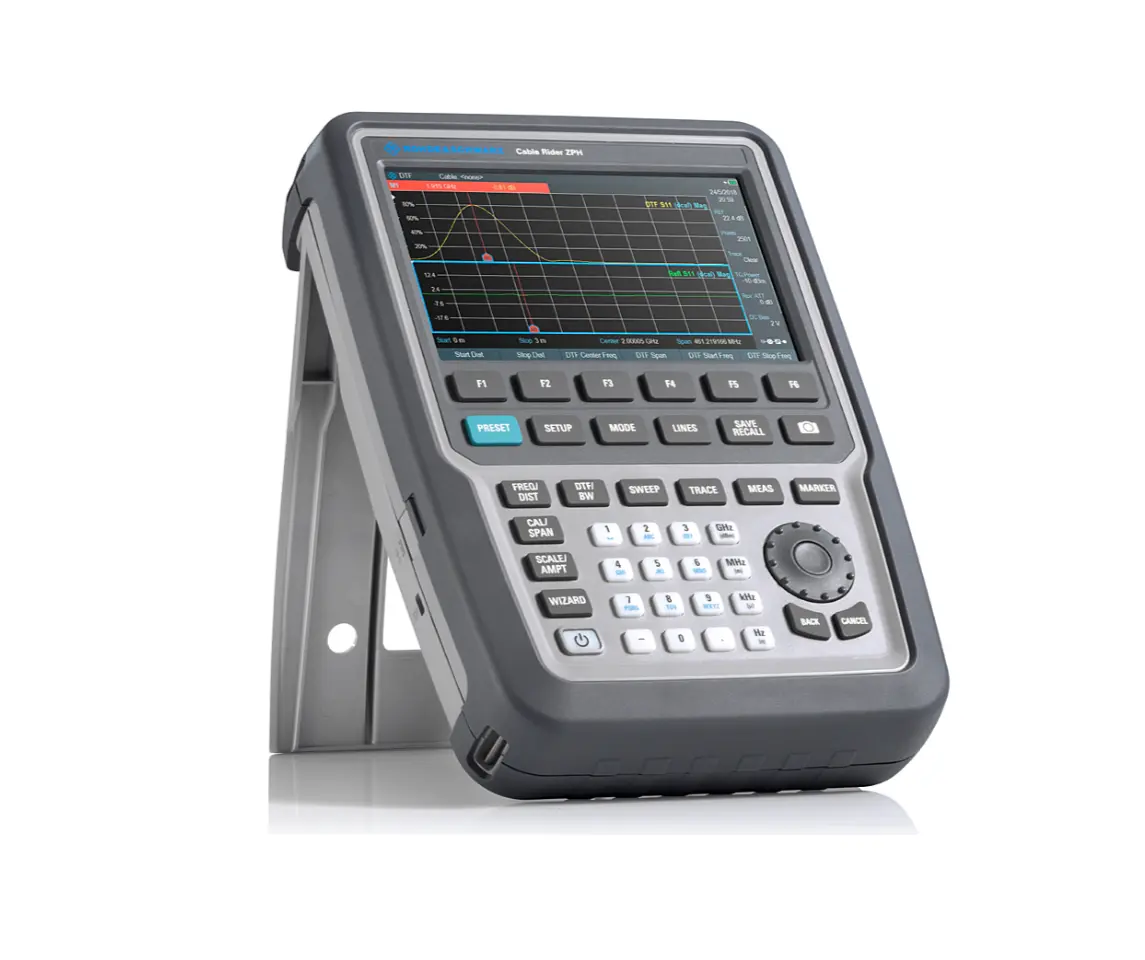

Rohde & Schwarz ZPH-COM1 Cable and Antenna Analyzer

Overview

The Rohde & Schwarz ZPH-COM1 is a one-port cable and antenna analyzer designed for field installation and maintenance of antenna systems. Equipped with a large color touchscreen, capacitive input, and illuminated keypad, it provides fast and accurate measurements with minimal warm-up time. Factory calibration ensures reliable out-of-the-box performance, with optional calibration kit available for eliminating effects of external cables and adapters.

Key Features

• One-port cable and antenna analyzer with frequency range from 2 MHz to 4 GHz
• DTF, return loss, VSWR, and cable loss measurements
• Large color touchscreen with capacitive touch input for field usability
• Measurement wizard to streamline setup and reduce measurement errors
• Spectrum analyzer mode from 5 kHz to 4 GHz
• GPS support for location-based field measurements
• Power sensor support and channel power meter capabilities
• Pulse measurement analysis with power sensor option
• All options upgradeable via software keycode without hardware changes
• Up to 9-hour battery life for all-day field work
• Illuminated keypad for operation in low-light conditions

Applications

• Installing and maintaining cellular and broadcast antenna systems
• Cable and connector testing in field environments
• Transmission line characterization and diagnostics
• Spectrum monitoring and interference analysis
• Site surveys and RF coverage assessment

Included Accessories

• ZPH-B4 Frequency Upgrade to 4 GHz
• ZPH-B10 GPS Support
• ZPH-K9 Power Sensor Support
• ZPH-K19 Channel Power Meter
• ZPH-K29 Pulse Measurements with Power Sensor
