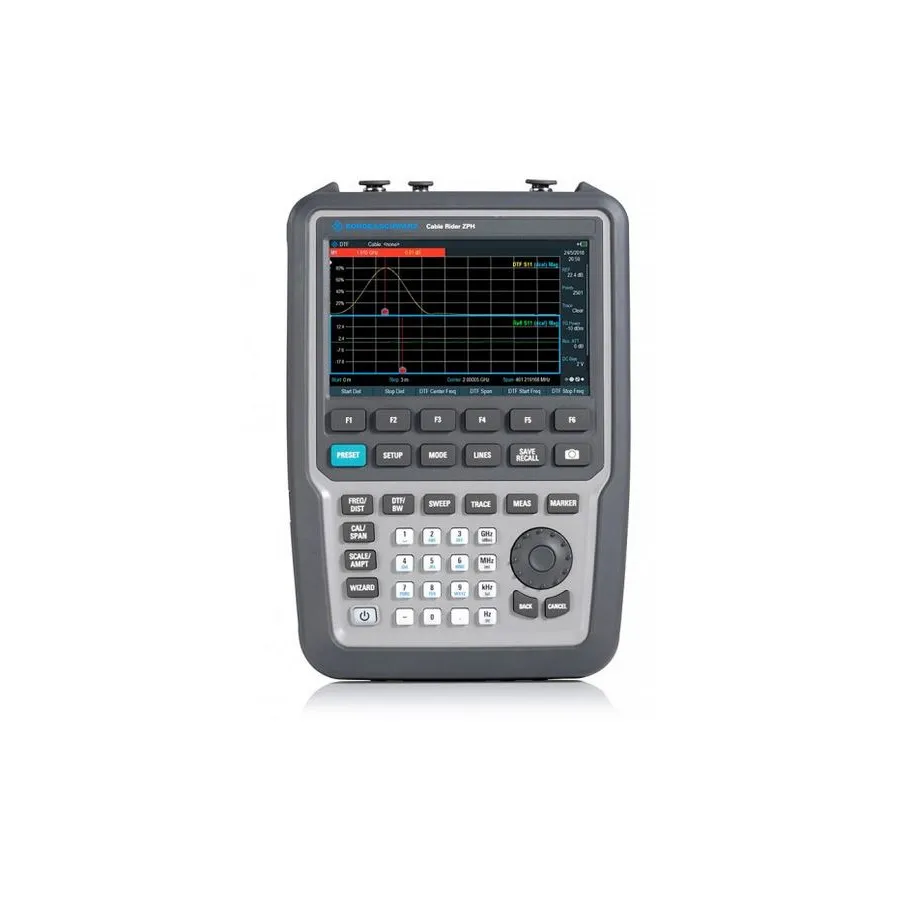

Rohde & Schwarz ZPH-COM1 Cable and Antenna Analyzer Bundle
Request a quote
Rohde & Schwarz ZPH-COM1 one-port cable and antenna analyzer bundle with 2 MHz to 4 GHz frequency range, touchscreen, measurement wizard, and 9-hour battery life.
Product details
| Model | ZPH-COM1 |
| Manufacturer | Rohde & Schwarz |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZPH-COM1 is a portable one-port cable and antenna analyzer bundle designed for field installation and maintenance of antenna systems. It combines factory-calibrated measurement accuracy with an intuitive touchscreen interface, enabling rapid on-site analysis without requiring pre-use calibration.
Key Features
- Frequency range from 2 MHz to 3 GHz or 4 GHz (upgradable via keycode)
- One-port measurements: DTF, return loss, VSWR, and cable loss
- Large color touchscreen for field operation
- Measurement wizard for efficient single-step measurements
- Battery life up to 9 hours per charge
- Fast boot and warm-up times
- Backlit keypad for low-light operation
- Rugged design with IP51 rating and 2.5 kg weight
Applications
- Antenna system installation and field maintenance
- Cable fault detection and troubleshooting
- On-site field measurements and diagnostics
Specifications
| Frequency | 4 GHz |
| Series | ZPH Series |
