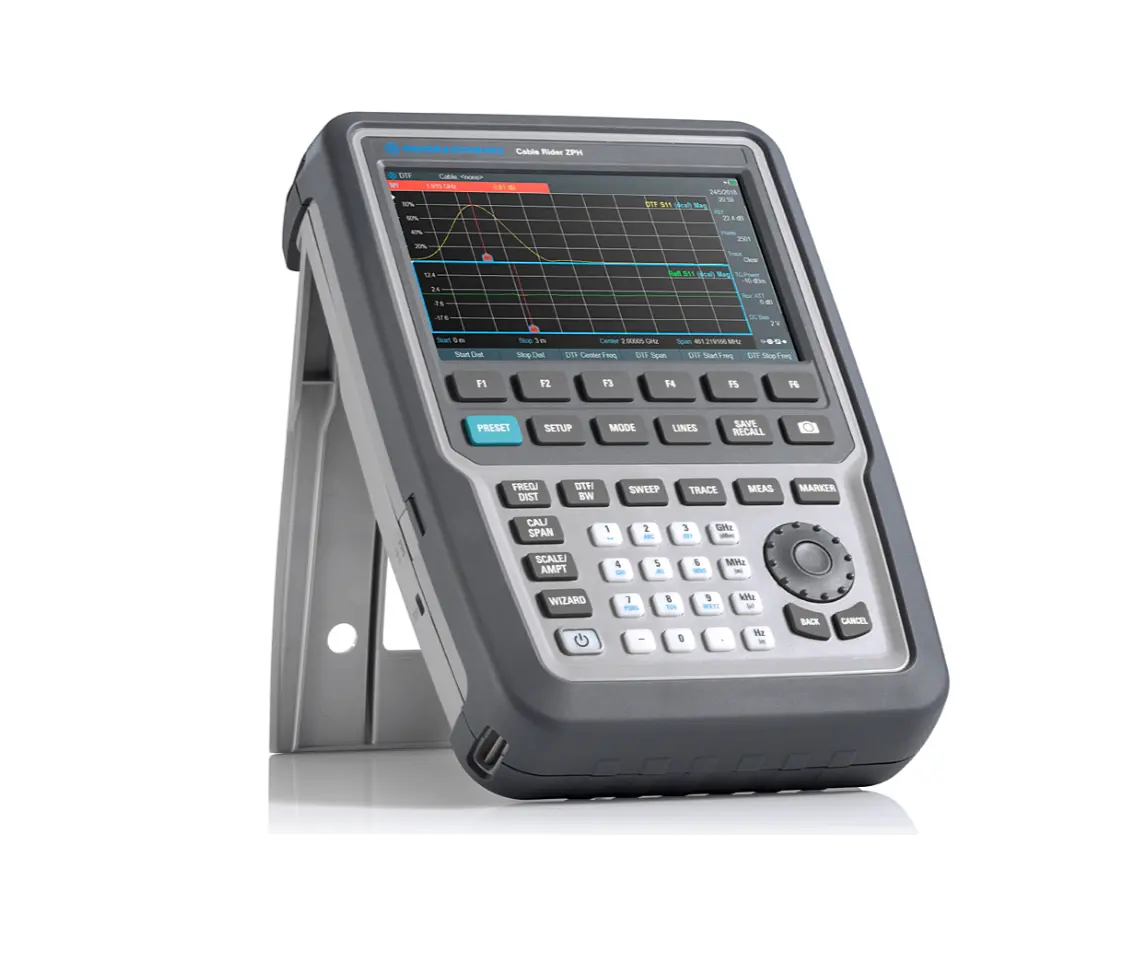

Rohde & Schwarz ZPH Cable and Antenna Analyzer
Request a quote
Rohde & Schwarz ZPH handheld cable and antenna analyzer with frequency range 2 MHz to 4 GHz, touchscreen, up to 9-hour battery life, and rugged field design.
Product details
| Model | ZPH (1321.1211.12) |
| Manufacturer | Rohde & Schwarz |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz CableRider ZPH is a portable cable and antenna analyzer designed for field installation and maintenance of antenna systems. It combines essential measurement capabilities with a user-friendly interface featuring a touchscreen and illuminated keypad, making it ideal for on-site work in various lighting conditions.
Key Features
- Frequency range from 2 MHz to 3 GHz or 4 GHz (via keycode upgrade)
- One-port model: DTF, return loss, VSWR, and cable loss measurements
- Two-port model: additional transmission measurement, spectrum analysis, interference analysis, and signal strength mapping
- Large color touchscreen with capacitive touch for intuitive operation
- Measurement wizard to streamline measurements and reduce human error
- Battery life up to 9 hours per charge
- Rugged housing with IP51 rating, weighing only 2.5 kg
- Fast boot and warm-up times for rapid deployment
Applications
- Antenna system installation and maintenance
- Cable testing and troubleshooting
- Field spectrum analysis
- Signal strength mapping and modulation analysis
Specifications
| Frequency Range (Cable/Antenna Mode) | 2 MHz to 3 GHz or 4 GHz |
| Frequency Range (Spectrum Mode) | 5 kHz to 3 GHz or 4 GHz |
| One-Port Measurements | DTF, return loss, VSWR, cable loss |
| Two-Port Measurements | Transmission, spectrum analysis, interference analysis, signal strength mapping, modulation analysis |
| Display | Large color touchscreen with capacitive touch |
| Battery Life | Up to 9 hours |
| Weight | 2.5 kg |
| Environmental Rating | IP51 |
