Rohde & Schwarz ZPH Cable and Antenna Analyzer
Request a quote

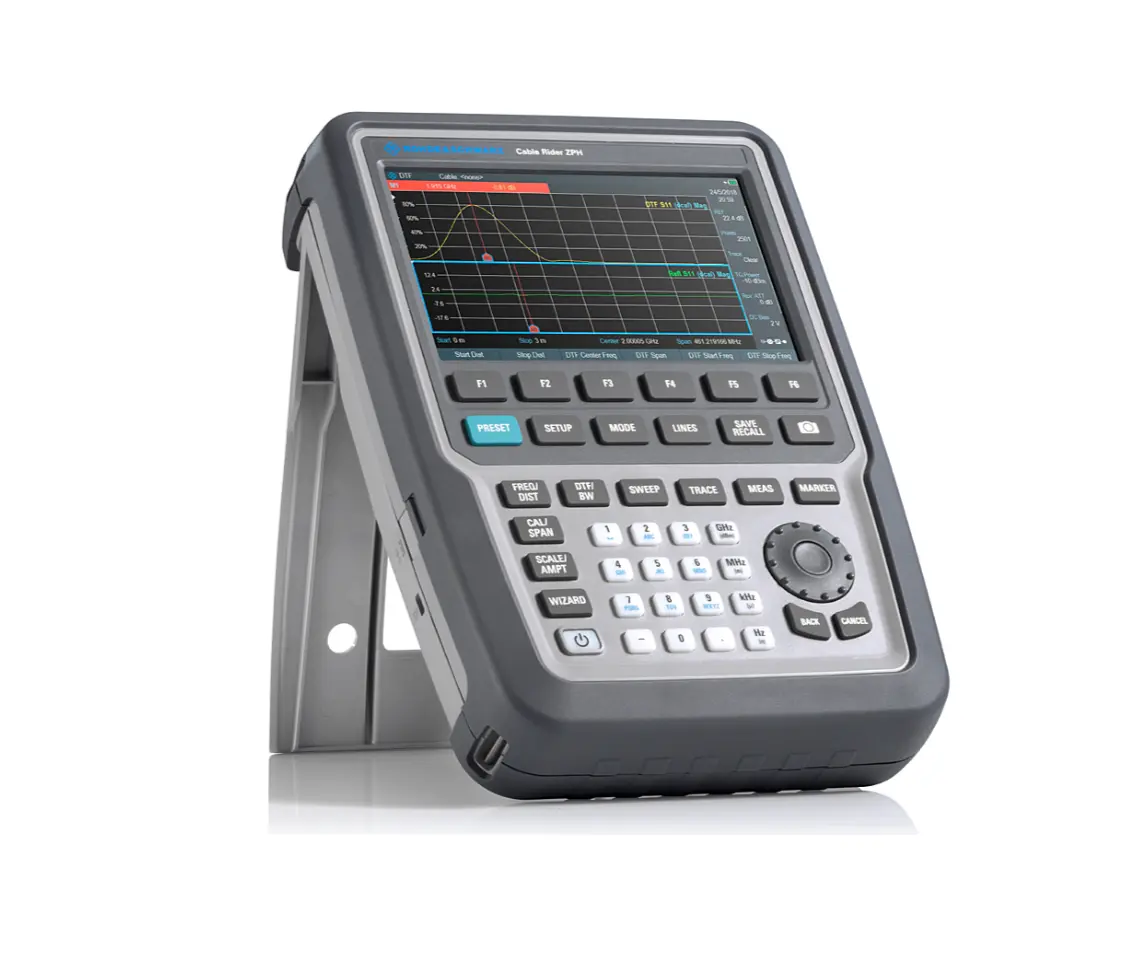

Rohde & Schwarz ZPH CableRider is a portable cable and antenna analyzer with 2 MHz to 6 GHz frequency range, touchscreen interface, and up to 9-hour battery life.
Product details
| Model | ZPH (1321.1211.02) |
| Manufacturer | Rohde & Schwarz |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZPH CableRider is a portable field analyzer designed for cable and antenna system installation, maintenance, and troubleshooting. It combines ease of use with fast measurement capabilities and operates for extended periods on battery power. The analyzer requires no factory calibration and features an innovative capacitive touchscreen for intuitive operation in field environments.
Key Features
- Frequency range: 2 MHz to 3 GHz or 4 GHz in cable and antenna analyzer mode (upgradeable via keycode)
- Spectrum analyzer mode: 5 kHz to 3 GHz or 4 GHz
- One-port measurements: distance-to-fault (DTF), return loss, VSWR, and cable loss
- Two-port capabilities: transmission measurement, spectrum analysis, interference analysis, signal strength mapping, and modulation analysis
- Large color touchscreen for marker placement and settings adjustment
- Measurement wizard for single-step, error-free measurements
- Fast boot time and rapid measurement speed
- Programmable measurement setups and preconfigured settings storage
- Backlit illuminated keypad for low-light operation
- Battery life up to 9 hours on single charge
- Compact, ruggedized design: 2.5 kg (5.5 lb), IP51 rating
Applications
- Antenna system installation and commissioning
- Cable damage and fault location
- Return loss and impedance matching verification
- Transmission line characterization
- RF signal presence detection and analysis
- Field calibration and compliance testing
Optional Accessories
- ZN-Z103: Automatic calibration unit for cable and adapter effects elimination
- InstrumentView software: Measurement report generation and data analysis
Specifications
| Frequency Range (Cable/Antenna Mode) | 2 MHz to 3 GHz or 4 GHz |
| Frequency Range (Spectrum Mode) | 5 kHz to 3 GHz or 4 GHz |
| Display | Large color touchscreen |
| Battery Life | Up to 9 hours |
| Weight | 2.5 kg (5.5 lb) |
| IP Rating | IP51 |
| One-Port Measurements | DTF, return loss, VSWR, cable loss |
| Two-Port Measurements | Transmission, spectrum, interference, signal strength, modulation |
| Keypad | Backlit, illuminated for low-light operation |
